RL78/F13, F14 CHAPTER 17 LIN/UART MODULE (RLIN3)

R01UH0368EJ0210 Rev.2.10 1257

Dec 10, 2015

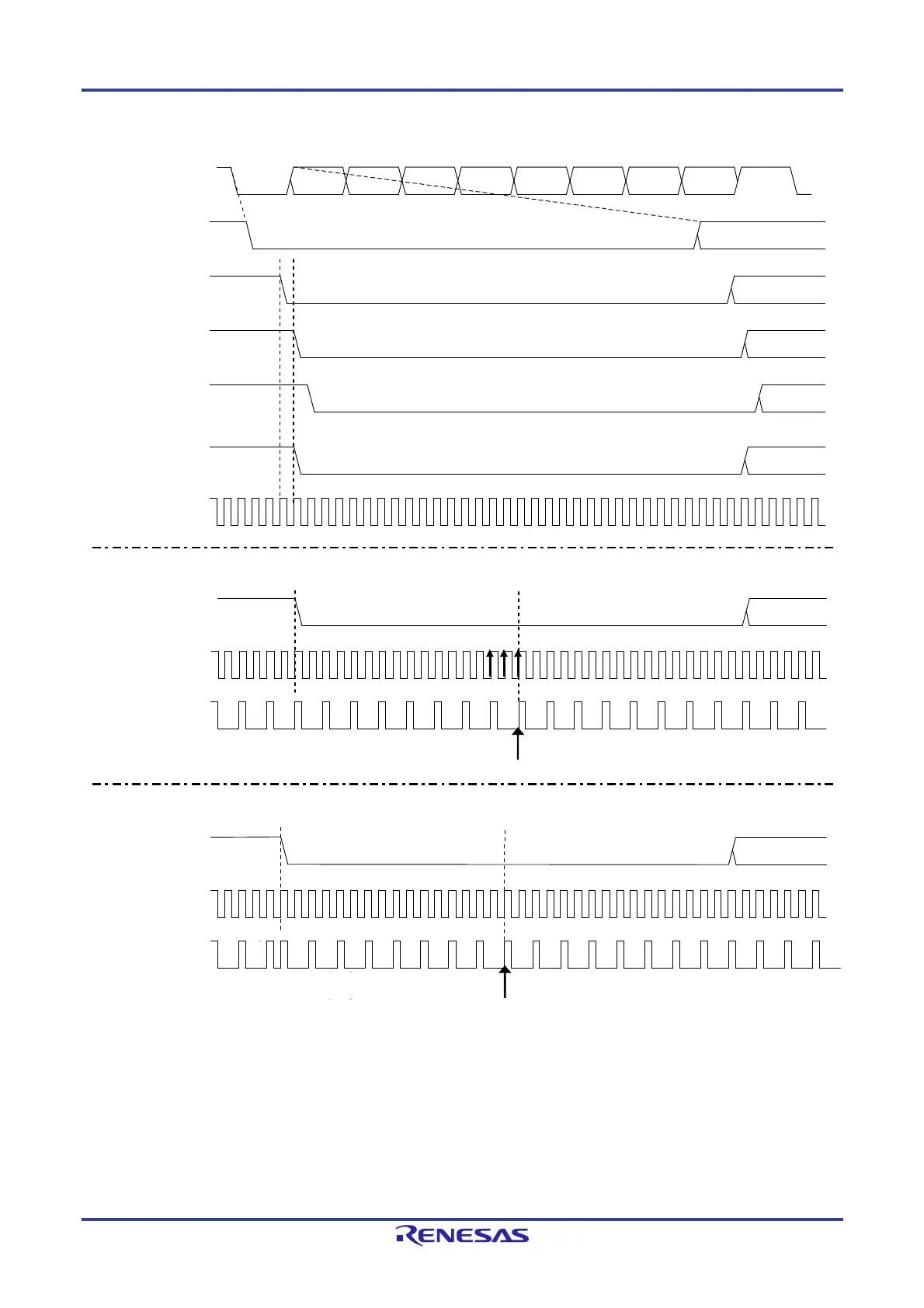

Figure 17-46. Determination of Received Data when Noise Filter is Used

LRXDn

Start

bit

Bit

Stop

bit

Start bit

Bit

[Determination of the received data when using noise filter]

[Determination of the received data at the time of the noise filter unused]

(n = 0, 1)

Synchronization LRXDn

Prescaler clock

Sampling clock

Sampling point

Noise filtering

FF1 signal of circuit

Noise filtering

FF2 signal of circuit

Start bit

Noise filter output

Start bit

Noise filter output

Start bit

Prescaler clock

Sampling clock

Sampling point

Synchronization LRXDn

Start bit
