Renesas RL78 Series User Manual

RL78/F13, F14 CHAPTER 20 EVENT LINK CONTROLLER (ELC) (RL78/F14 Only)
R01UH0368EJ0210 Rev.2.10 1466
Dec 10, 2015
CHAPTER 20 EVENT LINK CONTROLLER (ELC) (RL78/F14 Only)
The event link controller (ELC) mutually connects (links) events output from each peripheral function. By linking events,
it becomes possible to coordinate operation between peripheral functions directly without going through the CPU.
20.1 Overview
The ELC has the following functions.
 Capable of directly linking event signals from 20 (Group D products) or 26 (Group E products) types of peripheral
functions to specified peripheral functions
 Event signals can be used as activation sources for operating any one of seven (Group D products) or nine (Group
E products) types of peripheral functions
Remark Group A: RL78/F13 (LIN incorporated) products with 20, 30, 32, 48, or 64 pins and 16 Kbytes to 64 Kbytes of
code flash memory
Group B: RL78/F13 (LIN incorporated) products with 48 or 64 pins and 96 Kbytes to 128 Kbytes of code
flash memory or RL78/F13 (LIN incorporated) products with 80 pins and 64 Kbytes to 128 Kbytes
of code flash memory
Group C: RL78/F13 (CAN incorporated) products with 30, 32, 48, 64, or 80 pins and 32 Kbytes to 128 Kbytes
of code flash memory
Group D: RL78/F14 products with 30, 32, 48, 64, or 80 pins and 48 Kbytes to 96 Kbytes of code flash
memory
Group E: RL78/F14 products with 48, 64, or 80 pins and 128 Kbytes to 256 Kbytes of code flash memory or
RL78/F14 products with 100 pins and 64 Kbytes to 256 Kbytes of code flash memory
Figure 20-1 shows the Event Link Controller Block Diagram.

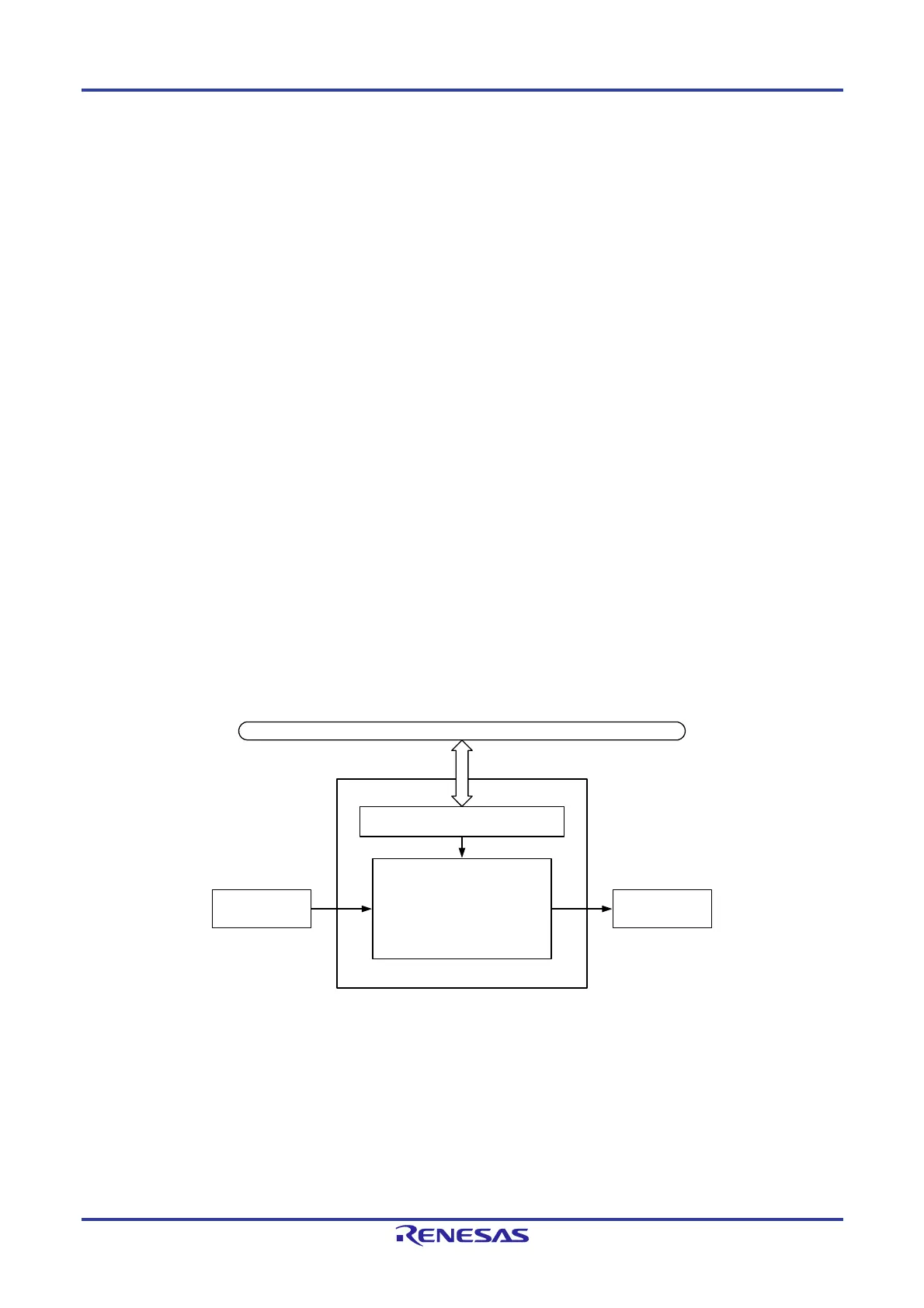

Figure 20-1. Event Link Controller Block Diagram
Internal bus
Event control
(Link connection processor)
Event output destination select register
ELSELRn (n = 00 to 25)
Peripheral function
(Event receive side)
Peripheral function
(Event output side)
