RL78/F13, F14 CHAPTER 18 CAN INTERFACE (RS-CAN LITE)

R01UH0368EJ0210 Rev.2.10 1424

Dec 10, 2015

18.13.3 RAM Test Setting Procedure

RAM tests include CAN RAM read/write test. The read/write test verifies that data written to the RAM is read correctly.

Before closing the RAM test, write H'0000 to all pages of the CAN RAM.

Figure 18-35 shows the RAM test setting procedure.

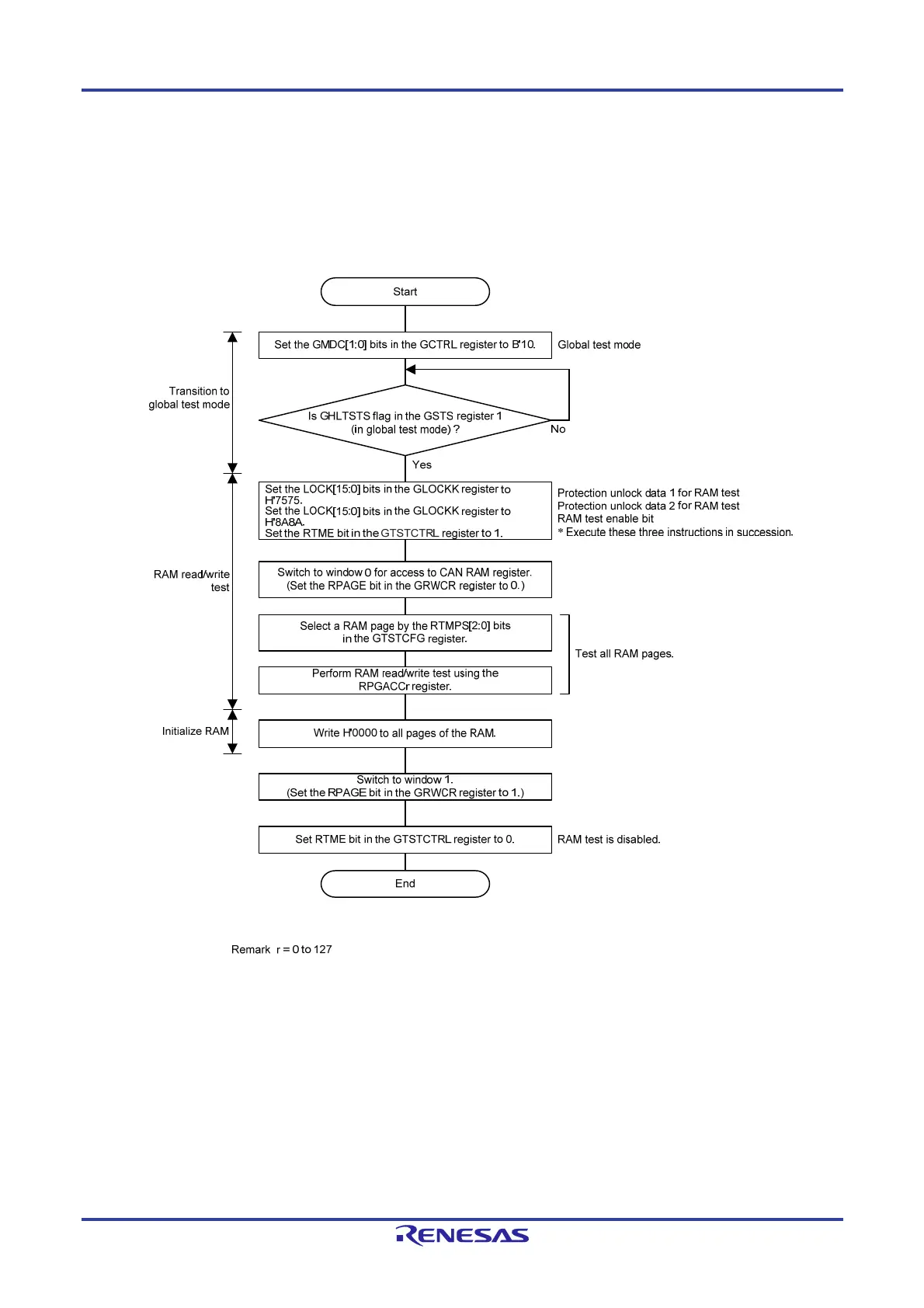

Figure 18-35. RAM Test Setting Procedure
