RL78/F13, F14 CHAPTER 27 SAFETY FUNCTIONS

R01UH0368EJ0210 Rev.2.10 1602

Dec 10, 2015

27.3.8 Invalid memory access detection function

The IEC60730 standard mandates checking that the CPU and interrupts are operating correctly.

The illegal memory access detection function triggers a reset if a memory space specified as access-prohibited is

accessed.

The illegal memory access detection function applies to the areas indicated by NG in Figure 27-21.

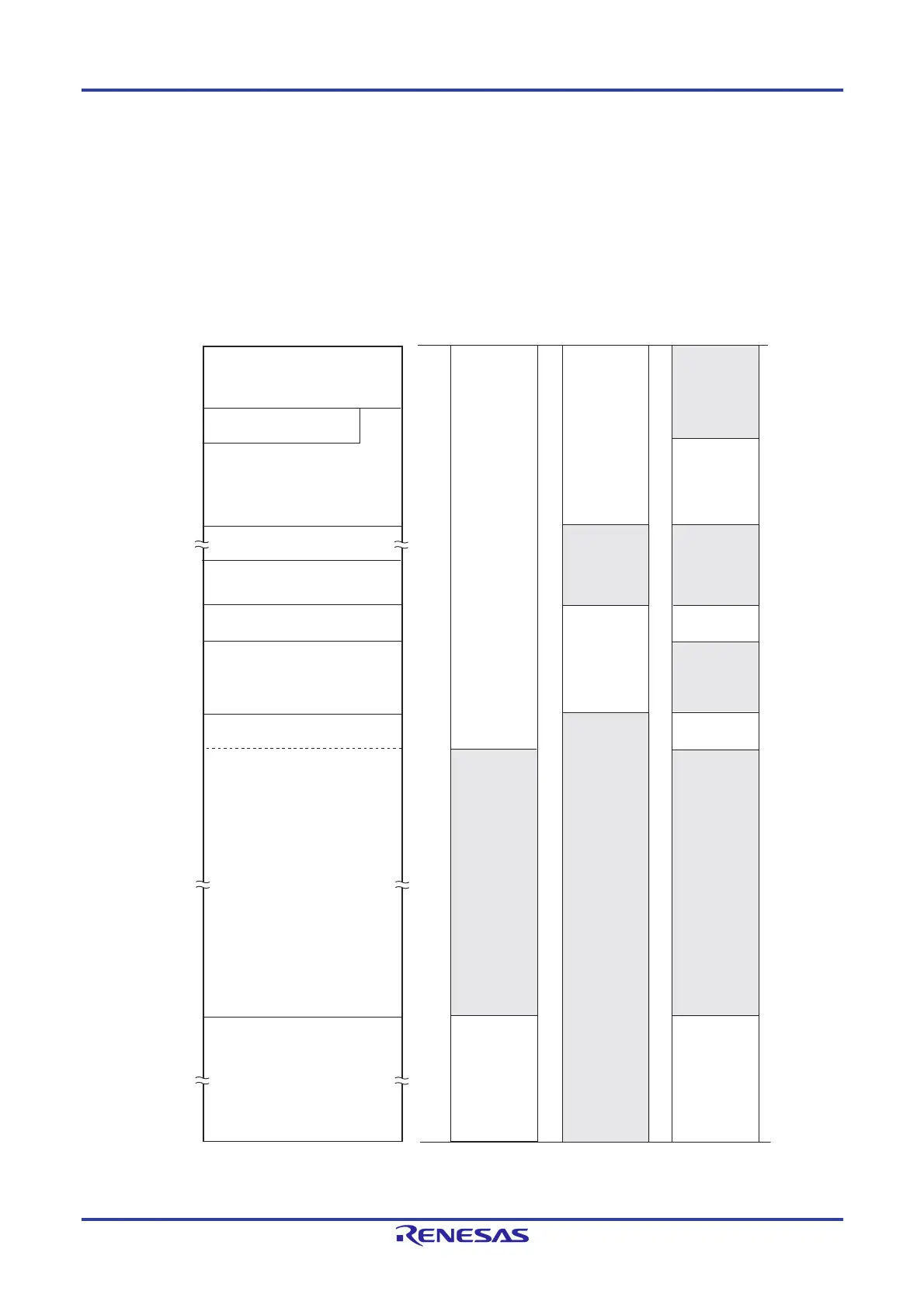

Figure 27-21. Invalid access detection area

(Notes are listed on the next page.)

Special function register (SFR)

256 bytes

RAM

Note 1

General-purpose register

32 bytes

Code flash memory

Note 1

Special function register (2nd SFR)

2 Kbytes

Reserved

Mirror

Data flash memory

Read

Write

Fetching

instructions

(execute)

Possibility access

Note 1

00000H

xxxxxH

FFF00H

yyyyyH

F1000H

F0FFFH

F0800H

F07FFH

F0000H

EF000H

FFFFFH

FFEDFH

FFEE0H

FFEFFH

EFFFFH

EEFFFH
