17.4.3 Transmission/Reception Data Buffering
This section explains the buffer processing that takes place when the LIN/UART module sends or receives data
continuously.
(1) Transmission of LIN Frames
For an 8-byte transmission, the contents stored in registers LDBn1 to LDBn8 are sequentially transmitted to data areas 1
to 8 of the LIN frame. In the case of a 4-byte transmission, the contents stored in registers LDBn1 to LDBn4 are
transmitted to data areas 1 to 4 of the LIN frame, but the contents of registers LDBn5 to LDBn8 are not transmitted. The
transmitted checksum data is stored in the LCBRn register.
Figure 17-16 depicts the LIN transmission processing and the required buffer.

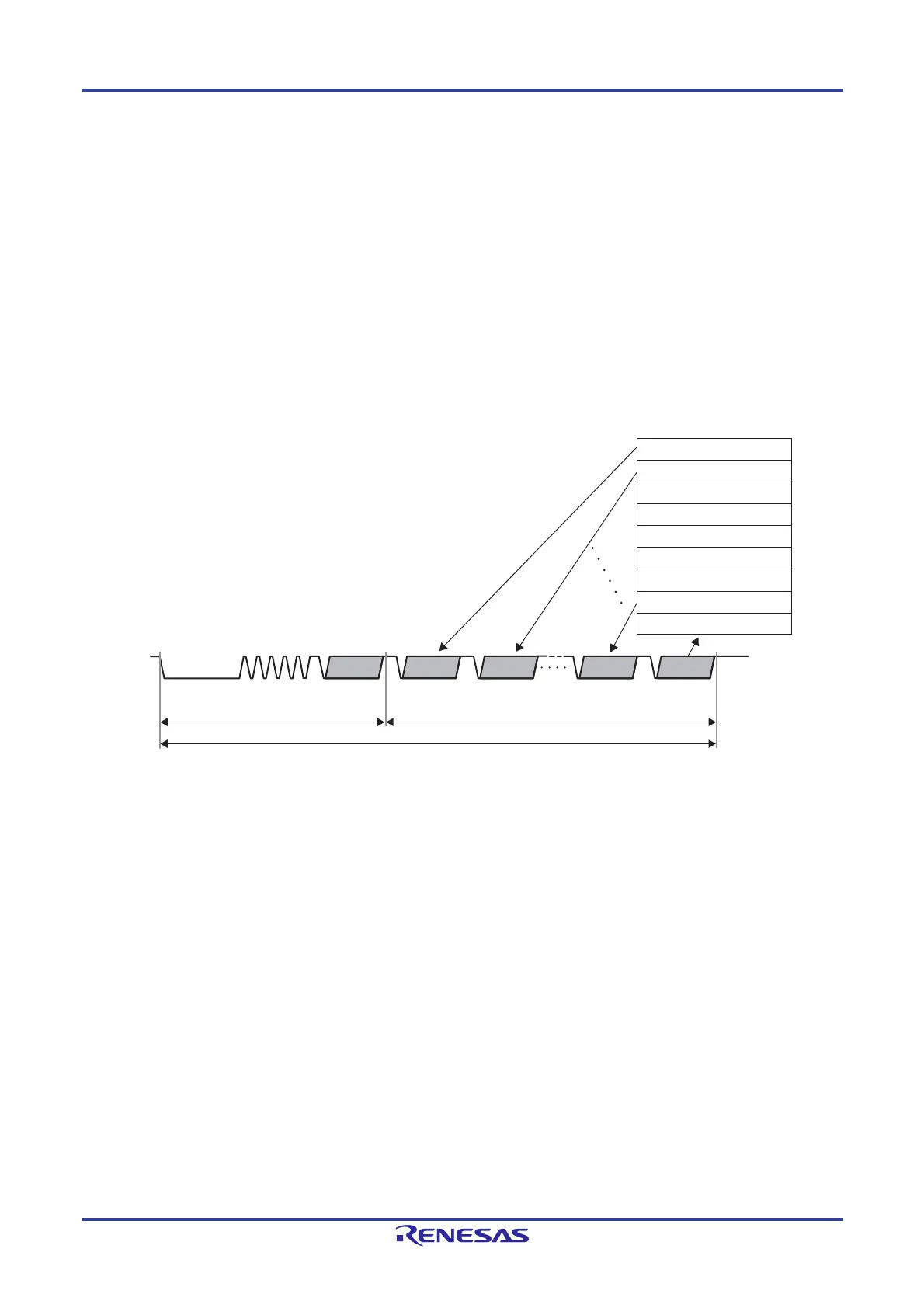

Figure 17-16. LIN Transmission Processing and Required Buffer
(a) Frame Separate Mode
Setting the FSM bit in the LDFCn register to 1 turns on the frame separate mode.
In frame separate mode, a header and a response are transmitted when prompted by separate transmission
start requests.
When the transmission of a header is finished, the HTRC flag in the LSTn register turns 1 (successful header
transmission).
Use frame separate mode when sending or receiving response data of 9 bytes or greater in LIN master mode.
Header
Frame
Response
Data 1 Data 2 Data 8
Checksum
Buffer
LDBn1 register
LDBn2 register
LDBn3 register
LDBn4 register
LDBn5 register
LDBn6 register
LDBn7 register
LDBn8 register
LCBRn register
