Renesas RL78 Series User Manual

RL78/F13, F14 CHAPTER 17 LIN/UART MODULE (RLIN3)
R01UH0368EJ0210 Rev.2.10 1224
Dec 10, 2015
17.5 UART Mode
17.5.1 Operation Overview
(1) Transmission
Figure 17-22 shows LIN/UART module (in UART mode) transmission operations; Table 17-18 shows LIN/UART module (in
UART mode) transmission processing.

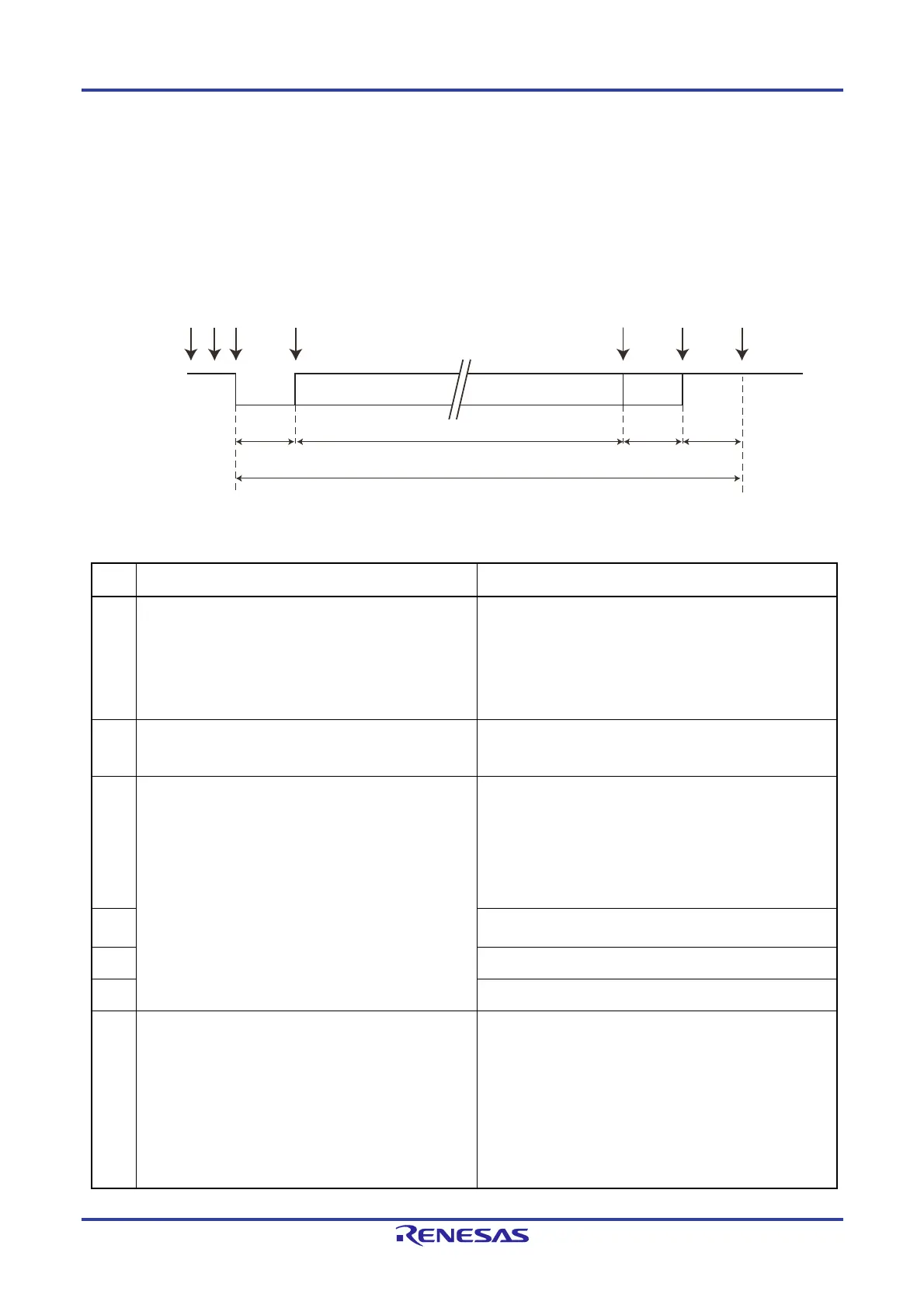

Figure 17-22. LIN/UART Module (in UART mode) Transmission Operation
Table 17-18. LIN/UART Module (UART Mode) Transmission Processing
Step Software processing LIN/UART module processing
(1)
 Sets a baud rate.
 Sets noise filter ON/OFF.
 Sets error detection enable.
 Sets data format
 Sets an interrupt generation timing.
 Clears the LIN/UART module from LIN reset mode
 Sets the transmit enable bit (UTOE bit) to 1
 Waits for a transmission trigger (LUTDRn register) by
software.
(2)
 Sets the transmission data in the UART transmission
data register (LUTDRn register) or UART wait
transmission data (LUWTDRn).
 Sets the transmission status flag.
(3)
 Waits for an interrupt request.
[When the UTIGTS bit is 0 (a transmission interrupt request
is output upon start of transmission)]
 When transmitting data continuously, sets another piece
of transmission data in the UART transmission data
register (LUTDRn register), waits for the generation of
an interrupt request.
 Transmits a start bit (for switching between transmission
and reception in half duplex communication, transmits a
start bit after receiving 1 stop bit. This function is referred to
in 17.5.1 (4) Transmission Start Wait Function).
[When the UTIGTS bit is 0 (a transmission interrupt request is
output upon start of transmission)]
 Outputs a transmission interrupt.
(4) Transmits the data set in the UART (wait) transmission data
register.
(5) Transmits a parity bit when parity is used.
(6) Transmits 1 or 2 stop bits.
(7) [When the UTIGTS bit is 0 (a transmission interrupt request
is output upon start of transmission)]
 If another piece of transmission data is set, goes to step
(3).
[When the UTIGTS bit is 1 (a transmission interrupt request
is output upon end of transmission)]
 When transmitting data continuously, goes to step (2).
[When the UTIGTS bit is 0 (a transmission interrupt request is
output upon start of transmission)]
 If another piece of transmission data is set, goes to step
(3).
 If another piece of transmission data is not set, clears the
transmission status flag.
[When the UTIGTS bit is 1 (a transmission interrupt request is
output upon end of transmission)]
 Outputs a transmission interrupt.
 Clears the transmission status flag
Idle
1 or 2
stop bits
0 or 1
parity bit
7, 8, or 9 data bits
UART frame
Idle
LTXDn
n = 0, 1
(1) (4)(3) (5) (6) (7)(2)
Start bit
