RL78/F13, F14 CHAPTER 35 ELECTRICAL SPECIFICATIONS (GRADE K)
R01UH0368EJ0210 Rev.2.10 1763
Dec 10, 2015

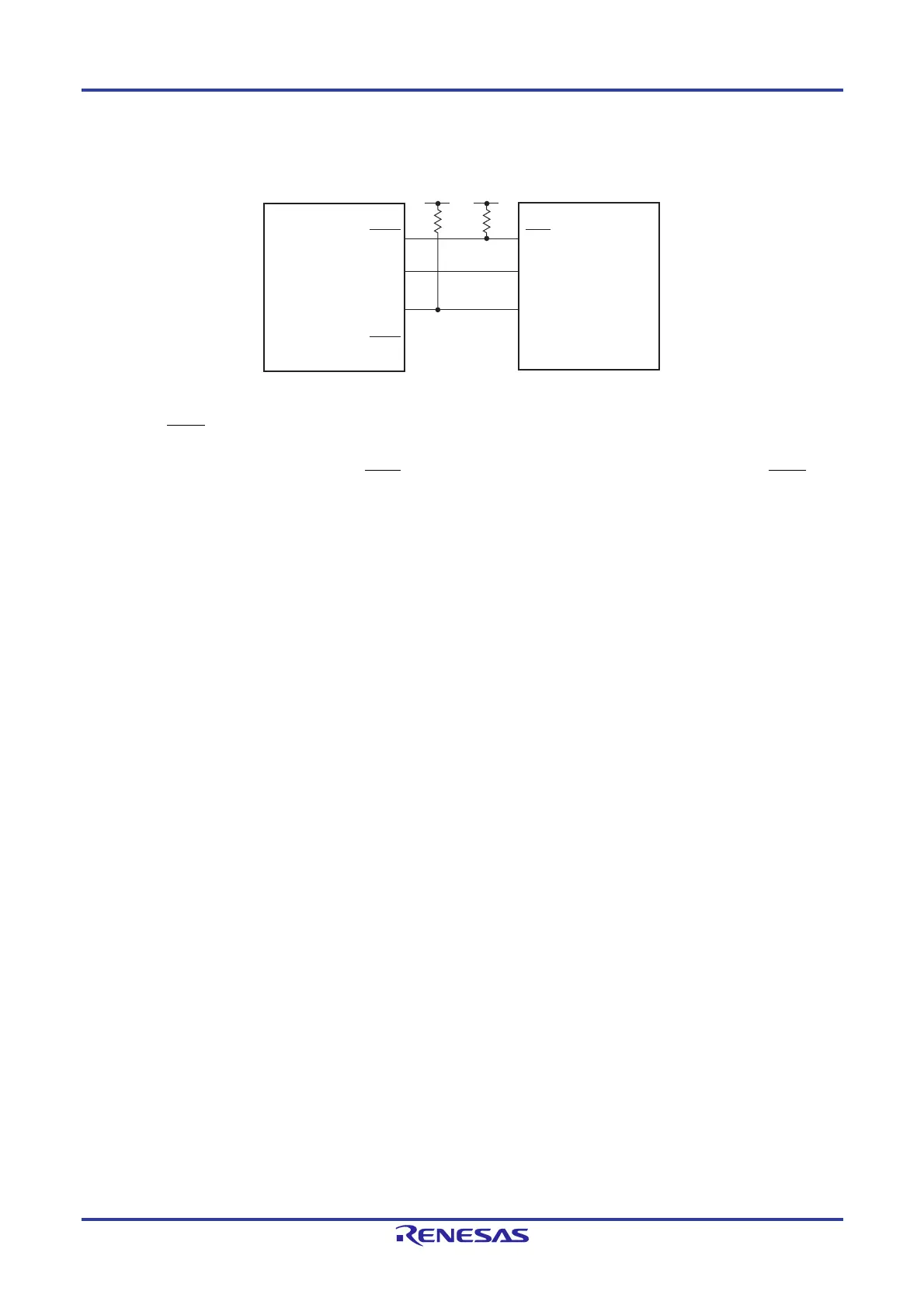

CSI mode connection diagram (during communication at different potential)
Caution Select the TTL input buffer for the SIp pin and N-ch open-drain output mode for the SOp pin and
SCKp pin.
Remarks 1. Rb [Ω]: Communication line (SCKp, SOp) pull-up resistance, Cb [F]: Communication line (SOp, SCKp) load
capacitance, V
b [V]: Communication line voltage
2. p: CSIp (p = 00, 01, 10, 11), m: Unit m (m = 0, 1), n: Channel n (n = 0, 1)
3. AC characteristics of the serial array unit during communication at different potential in CSI mode are
measured with the
VIH and VIL below:
When 4.0 V  EVDD0  5.5 V, 2.7 V  Vb  4.0 V: VIH = 2.2 V, VIL = 0.8 V
V b
R b
SCKp
SOp
SCK
SI
User's deviceSIp SO
V
b
R b
<Master>
RL78
microcontroller
SSIp
