RL78/F13, F14 CHAPTER 4 PORT FUNCTIONS

R01UH0368EJ0210 Rev.2.10 219

Dec 10, 2015

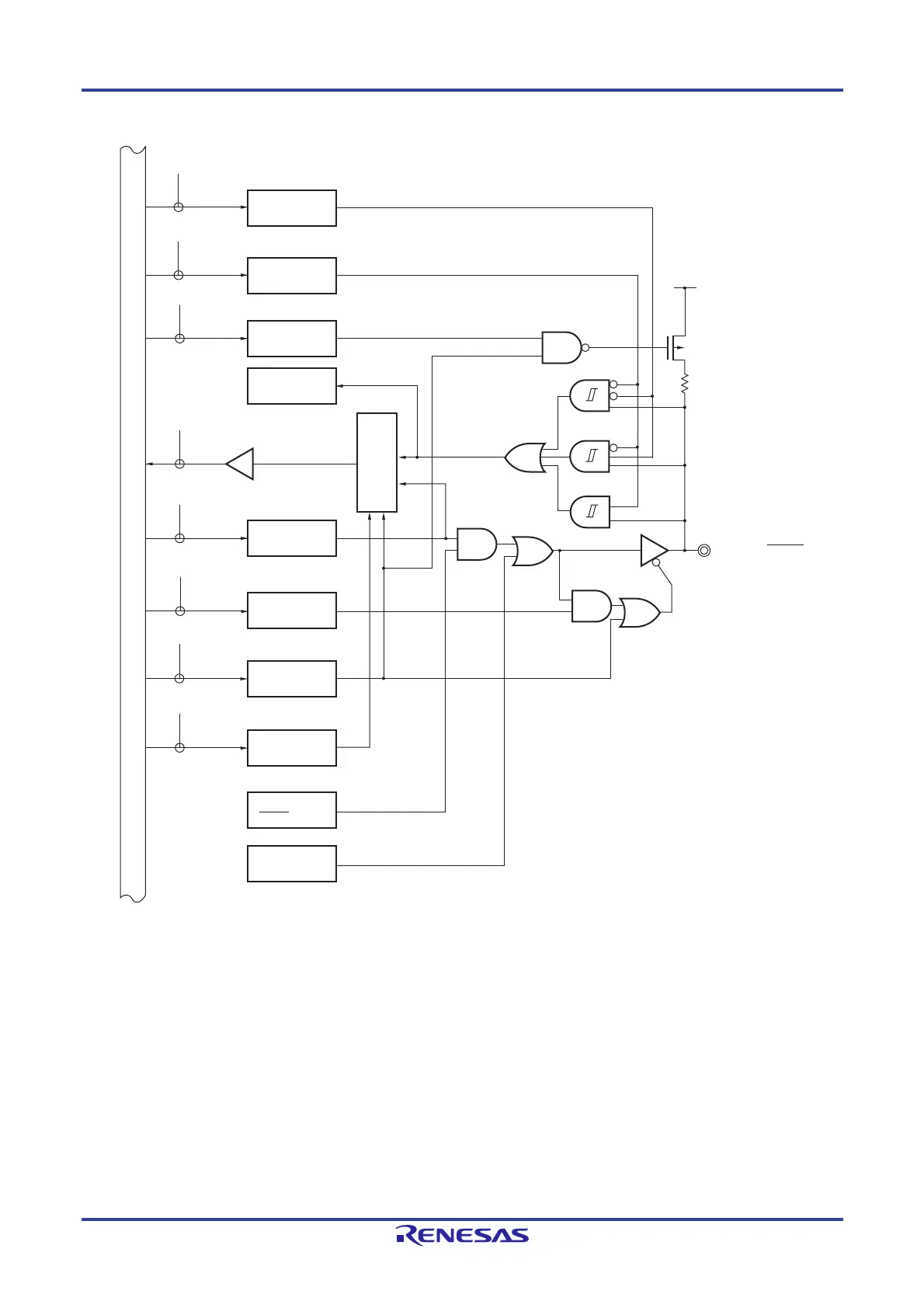

Figure 4-12. Block Diagram of P17

P17/TI00/TO00/

TRDIOB1/SCK00

SCL00/INTP3

PORT

PU17

P17

P-ch

PU1

PM1

POM17

POM1

POM

PM17

CMOS

(Schmitt3)

TTL

PIM1

PIM17

PIM

PITHL1

PITHL17

PITHL

CMOS

(Schmitt1)

PMS

PMS0

Alternate function

SCK00/SCL00

Alternate function

TO00/TRDIOB1

Alternate function

Internal bus

Selector

Output latch

P1: Port register 1

PU1: Pull-up resistor option register 1

PM1: Port mode register 1

PIM1: Port input mode register 1

POM1: Port output mode register 1

PMS: Port mode select register

PITHL1: Port input threshold control register 1

RD: Read signal

WRxx: Write signal
