RL78/F13, F14 CHAPTER 4 PORT FUNCTIONS

R01UH0368EJ0210 Rev.2.10 229

Dec 10, 2015

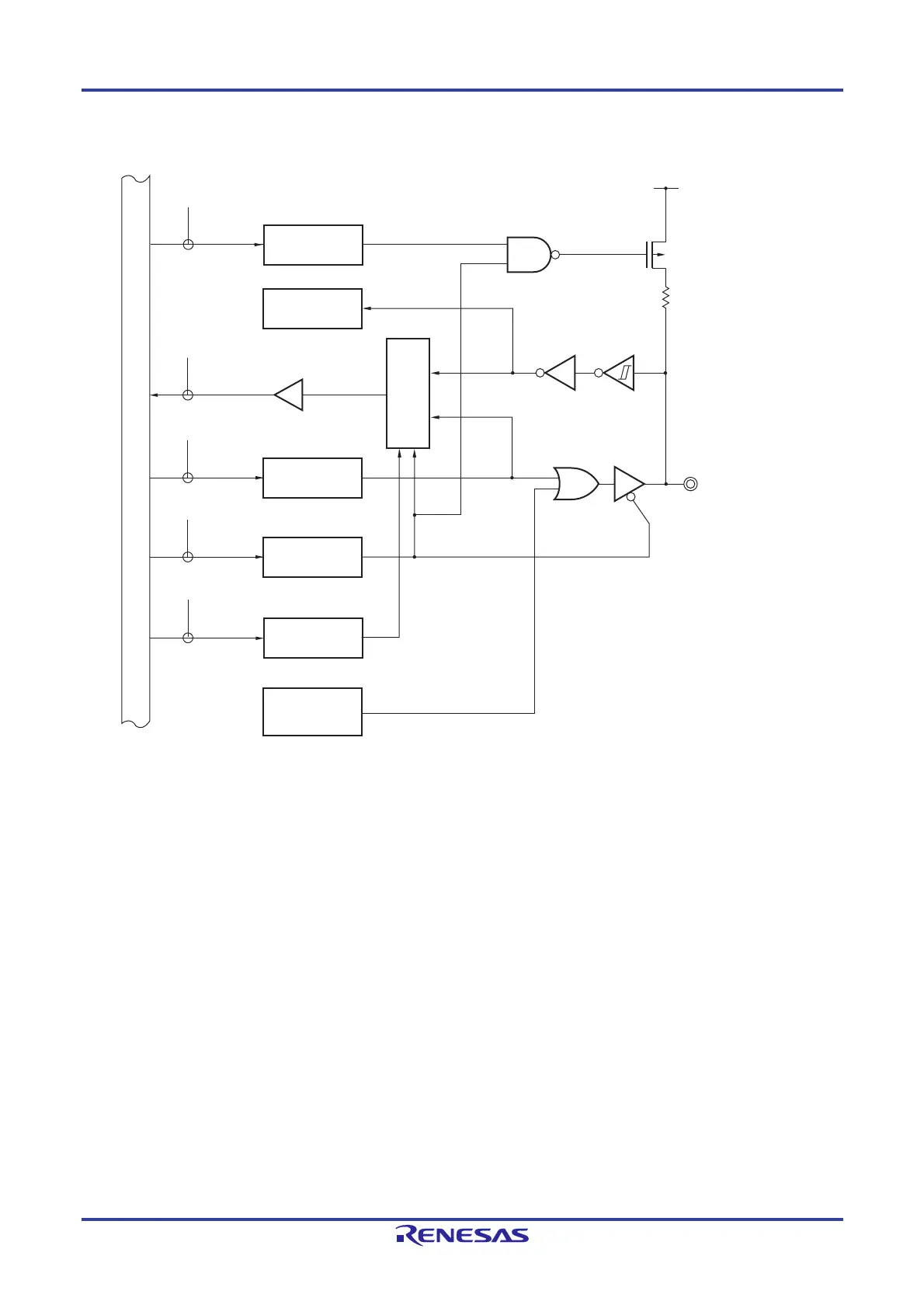

Figure 4-18. Block Diagram of P41

P41/TI10/TO10/

TRJIO0/VCOUT0

SNZOUT2

PORT

P41

TO10/VCOUT0/

SNZOUT2

PM4

P-ch

PU4

PM41

PU41

PMS

PMS0

Alternate function

Internal bus

Selector

Output latch

P4: Port register 4

PU4: Pull-up resistor option register 4

PM4: Port mode register 4

PMS: Port mode select register

RD: Read signal

WRxx: Write signal
