RL78/F13, F14 CHAPTER 4 PORT FUNCTIONS

R01UH0368EJ0210 Rev.2.10 250

Dec 10, 2015

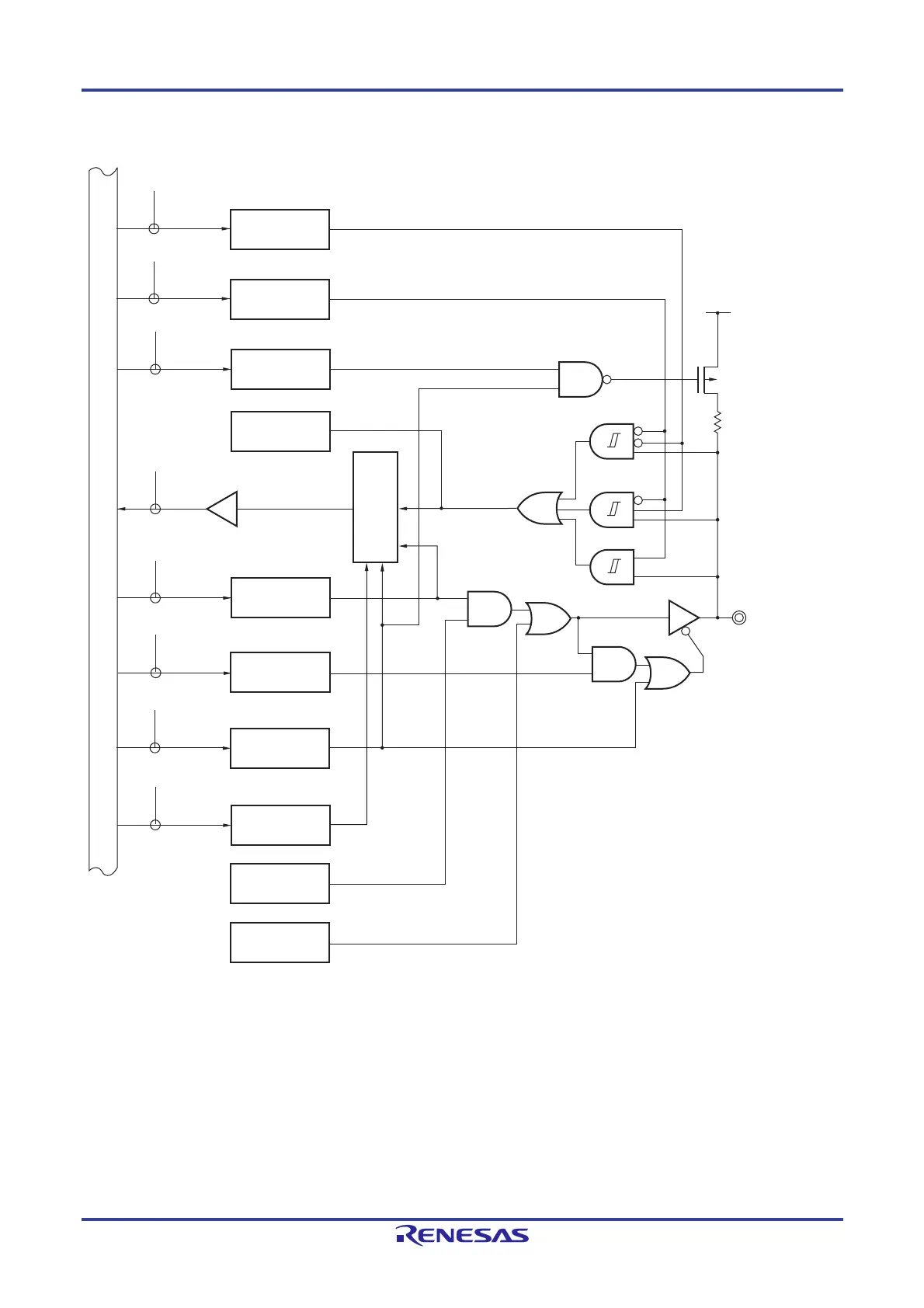

Figure 4-35. Block Diagram of P62

P62/SCLA0/

(SO00)/(TXD0)

PORT

PU62

Alternate

function

P62

P-ch

PU6

(SO00)/(TXD0)

SCLA0

PM6

POM62

POM6

POM

PM62

TTL

PIM6

PIM62

PIM

PITHL6

PITHL62

PITHL

PMS

PMS0

CMOS

(Schmitt3)

CMOS

(Schmitt1)

Internal bus

Output latch

Alternate function

Selector

P6: Port register 6

PU6: Pull-up resistor option register 6

PM6: Port mode register 6

PIM6: Port input mode register 6

POM6: Port output mode register 6

PMS: Port mode select register

PITHL6: Port input threshold control register 6

RD: Read signal

WRxx: Write signal
