RL78/F13, F14 CHAPTER 4 PORT FUNCTIONS

R01UH0368EJ0210 Rev.2.10 296

Dec 10, 2015

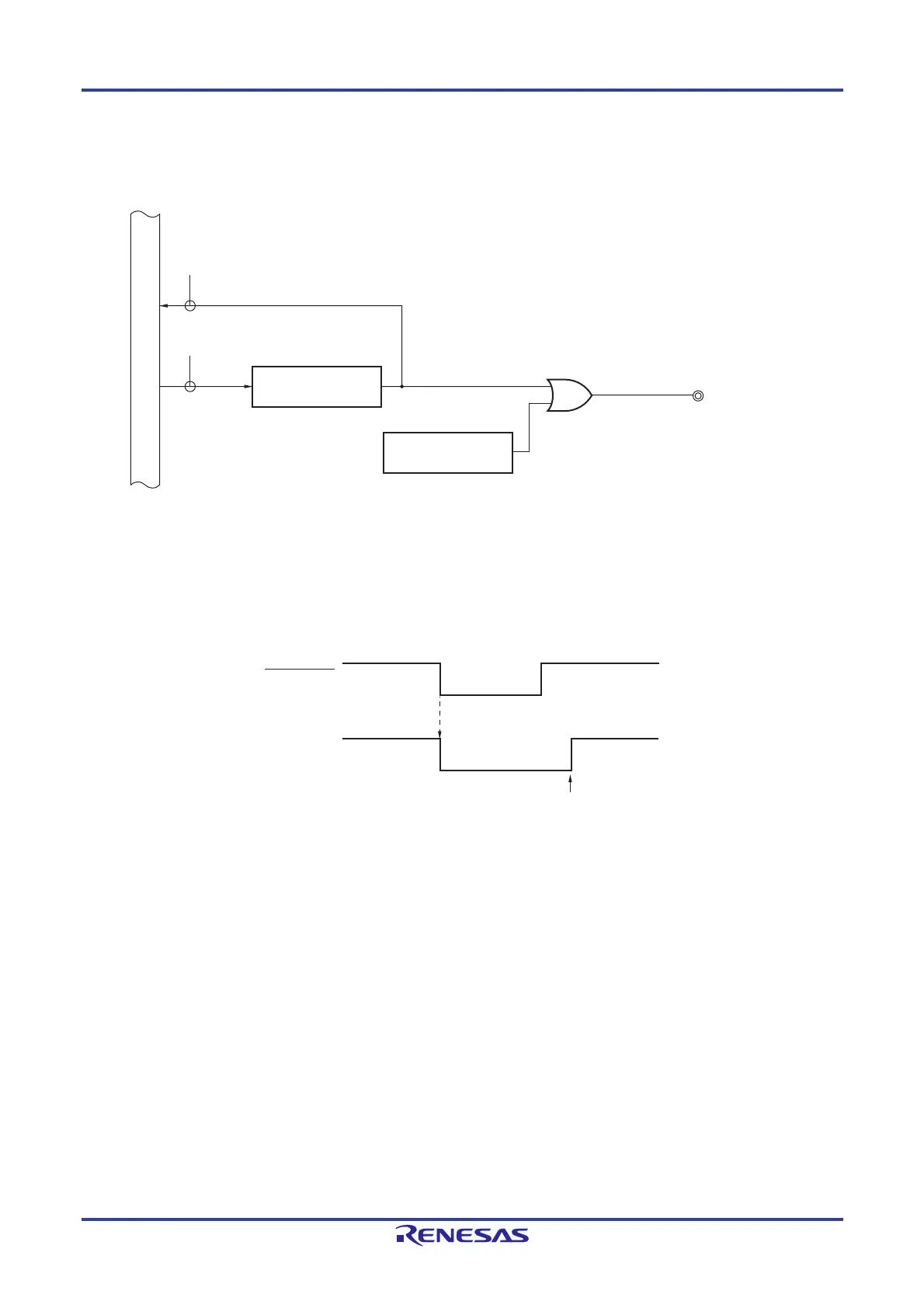

Figures 4-66 and 4-67 show block diagrams of port 13 for 100-pin products.

Figure 4-66. Block Diagram of P130

P130

RESOUT

PORT

P130/RESOUT

P13

Internal bus

Output latch

Alternate function

P13: Port register 13

RD: Read signal

WRxx: Write signal

Remark When reset is effected, P130 outputs a low level. If P130 is set to output a high level before reset is effected,

the output signal of P130 can be dummy-output as the CPU reset signal.

P130

Set by software

Reset signal
