RL78/F13, F14 CHAPTER 6 TIMER ARRAY UNIT

R01UH0368EJ0210 Rev.2.10 535

Dec 10, 2015

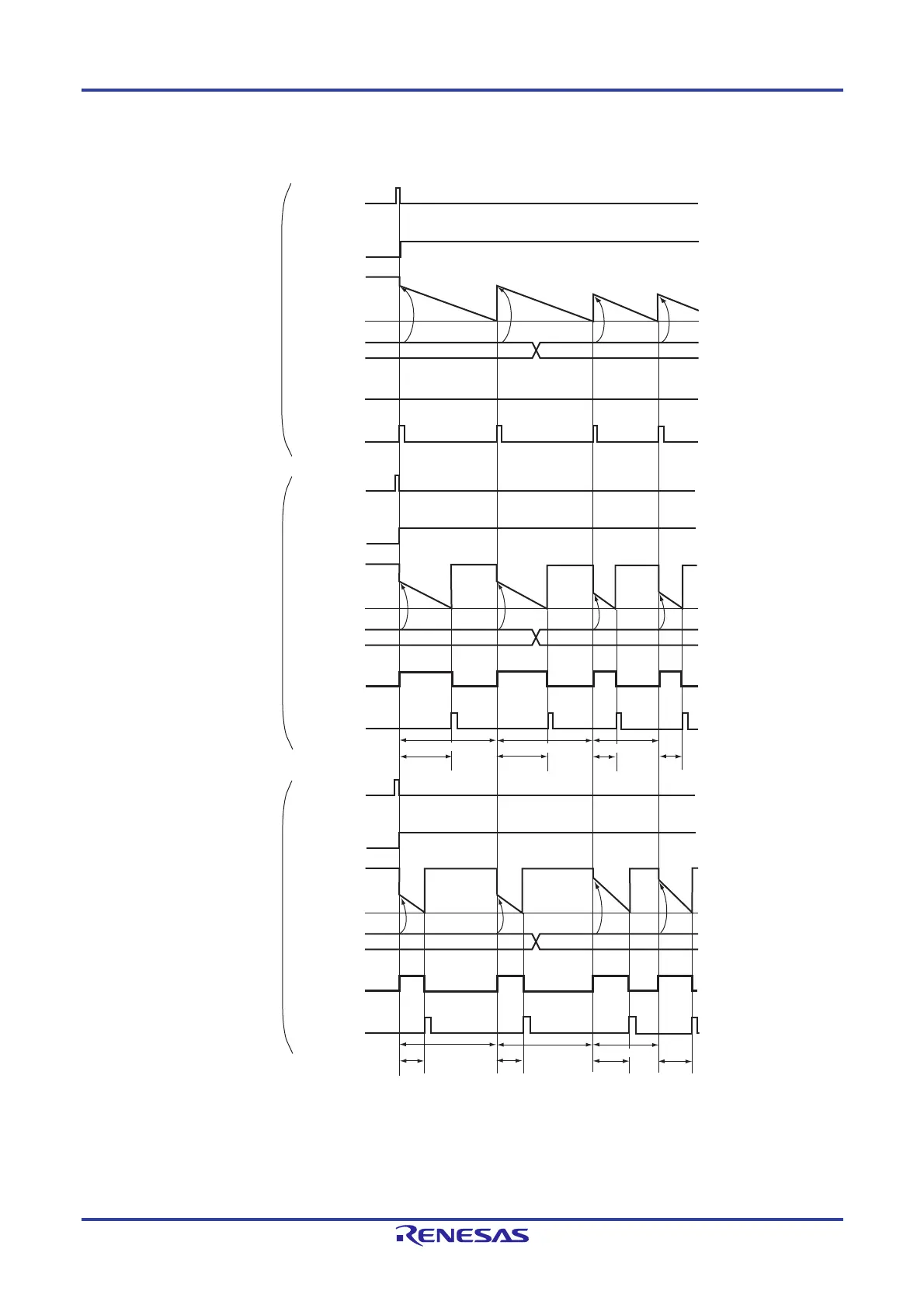

Figure 6-78. Example of Basic Timing of Operation as Multiple PWM Output Function

(Output two types of PWMs)

(Remarks are listed on the next page.)

TSmn

TEmn

TDRmn

TCRmn

TOmn

INTTMmn

a b

0000H

TSmp

TEmp

TDRmp

TCRmp

TOmp

INTTMmp

0000H

Master

channel

Slave

channel 1

a+1

b+1

FFFFH

TSmq

TEmq

TDRmq

TCRmq

TOmq

INTTMmq

0000H

Slave

channel 2

a+1

b+1

FFFFH
