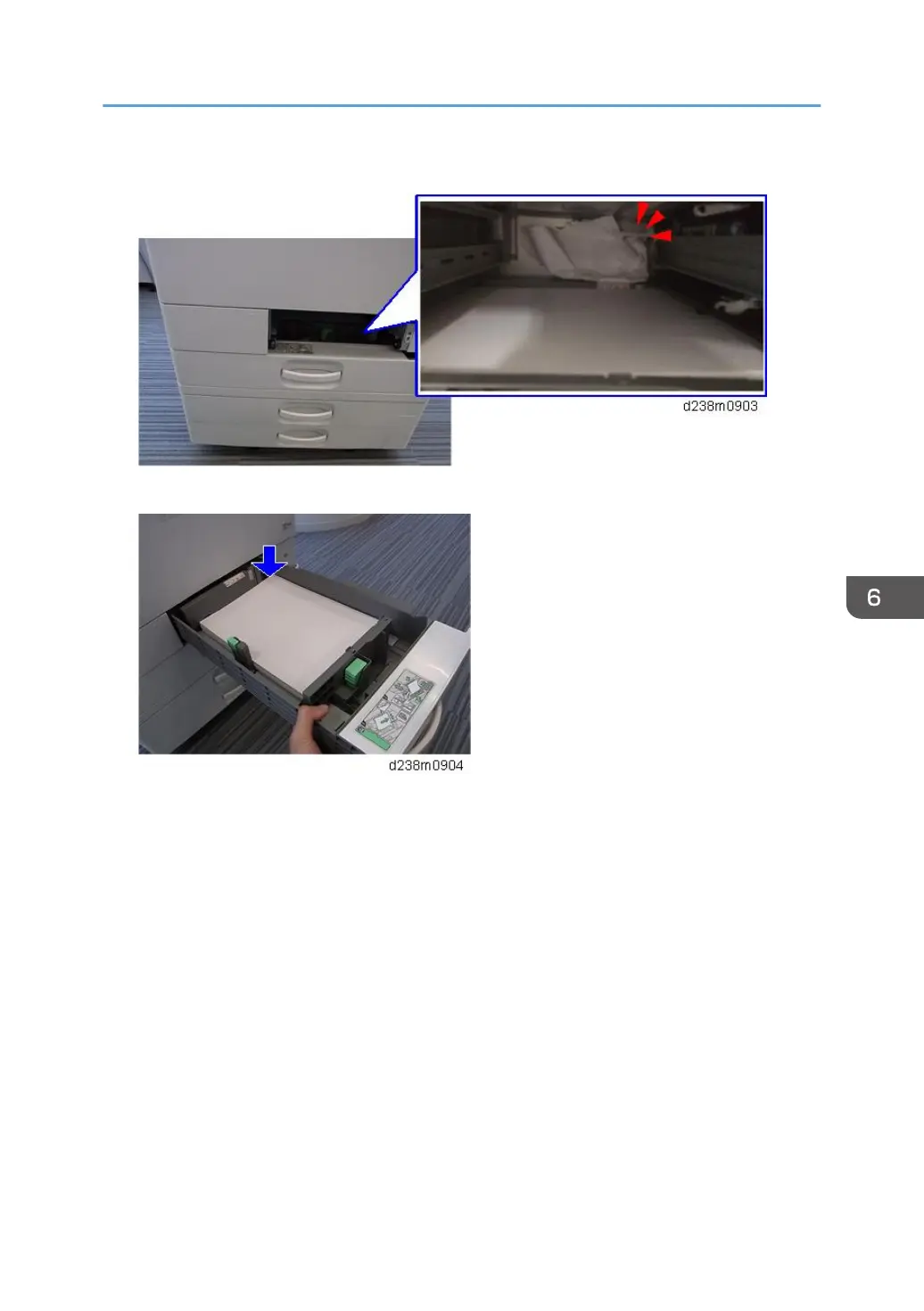

2. Check if there is any paper jammed in the machine, and remove it if there is.

3. If the sheets exceed the stackable limit, reduce the number of sheets.

4. Reattach the tray. Lift the tray slightly when you attach it.

Troubleshooting for SC Errors
