Ricoh MP C3004 - Before Replacement; Removing

To Next Page

To Previous Page

Before Replacement

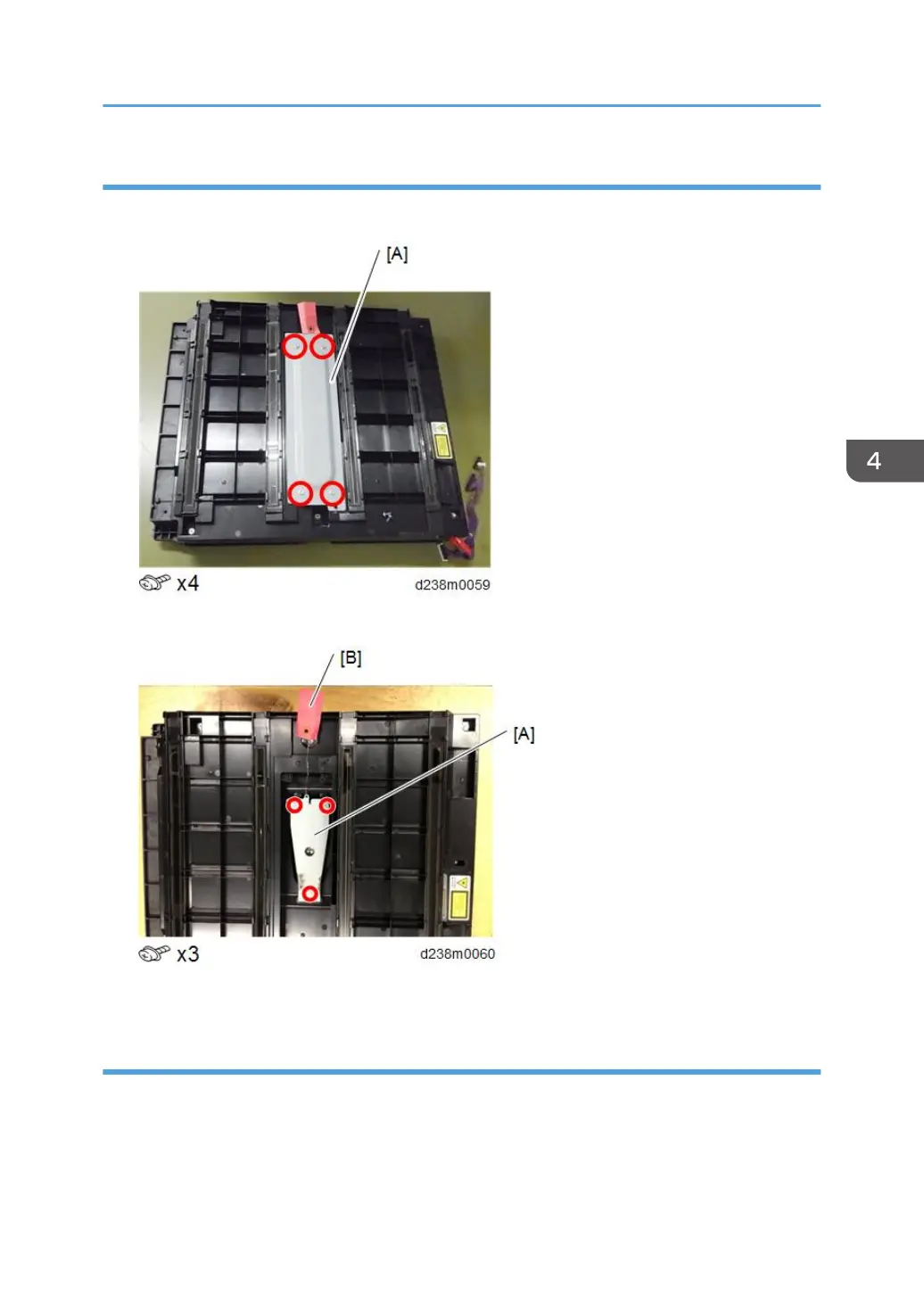

1. Remove the polygon mirror motor cover [A] from the new laser unit.

2. Polygon mirror motor bracket [A], Red tag [B]

3. Reattach the polygon mirror motor cover.

Removing

1. Left cover (page 496)

2. Laser unit [A]

Laser Unit

541
