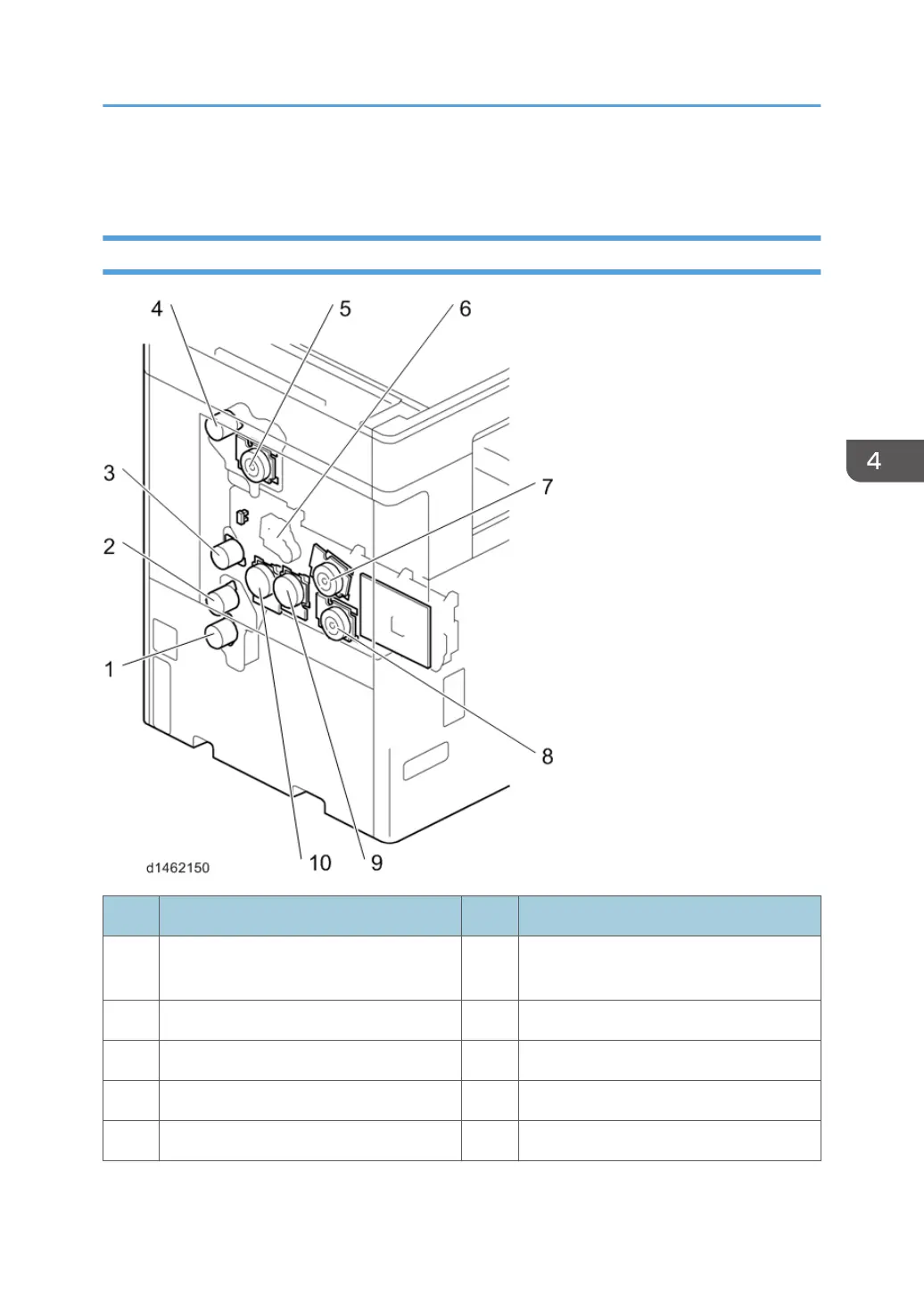

Drive Unit

Overview

No. Description No. Description

1 Paper Feed Motor 6

Paper Transfer Contact and Release

Motor

2 Transport Motor 7 PCU Motor: CMY

3 Registration Motor 8 Development Motor: CMY

4 Paper Exit / Pressure Release Motor 9 Development Motor: Black

5 Fusing Motor 10 PCU: Black / Image Transfer Motor
