Ricoh MP C3004 - Scanner Unit; Before You Begin; Scanner Exterior; Scanner Front Cover

Scanner Unit
Before You Begin
There is no SIO (Scanner Interface Board) in this machine. The functions of the SIO of the previous
machine are controlled by the IPU. Harnesses of the scanner unit connect directly to the IPU in the
controller box on the back of the machine.
Scanner Exterior
Scanner Front Cover

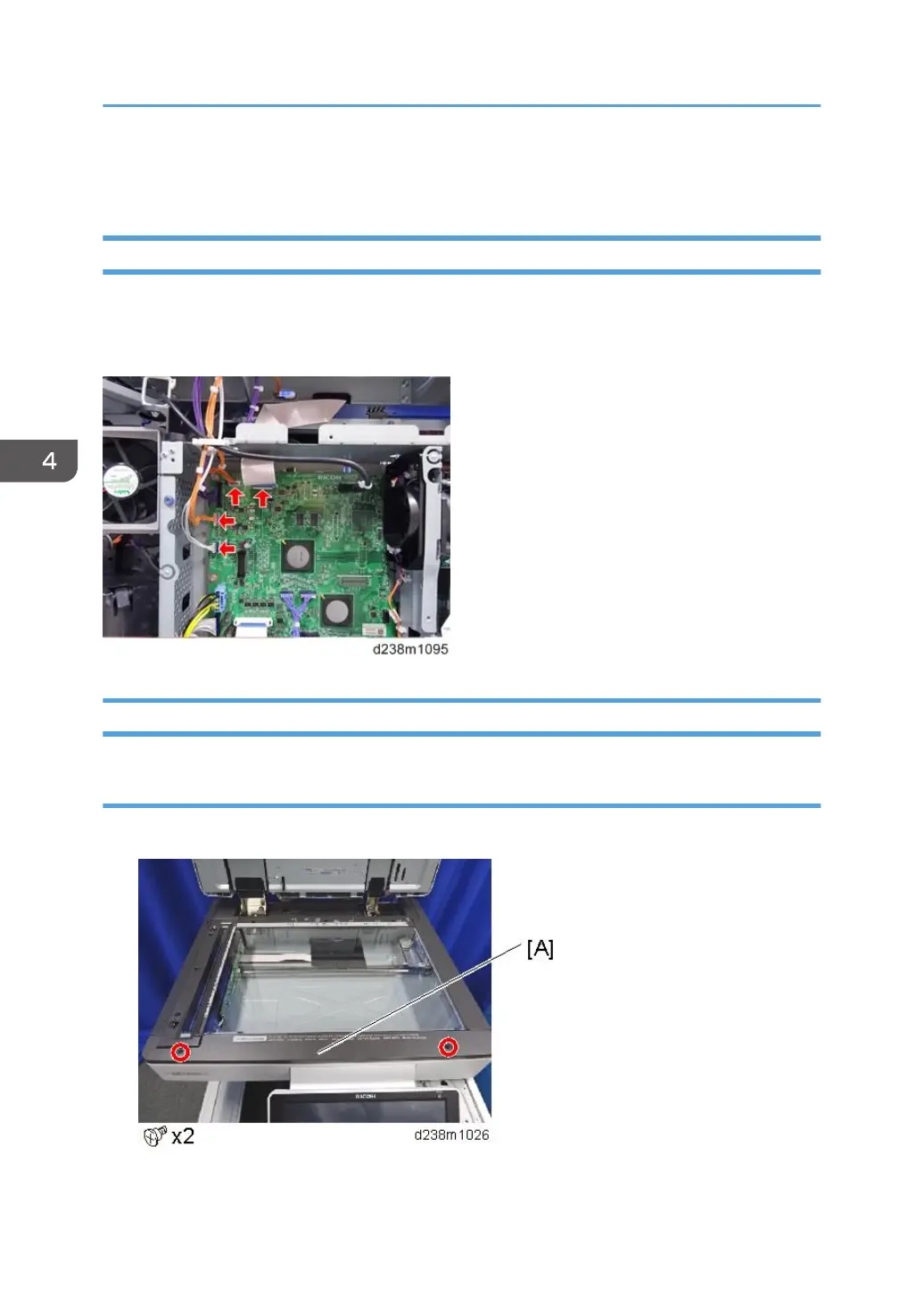

1. Scanner front cover [A]
