5. When the rear edge of the paper leaves the reverse roller, the reverse motor switches OFF.

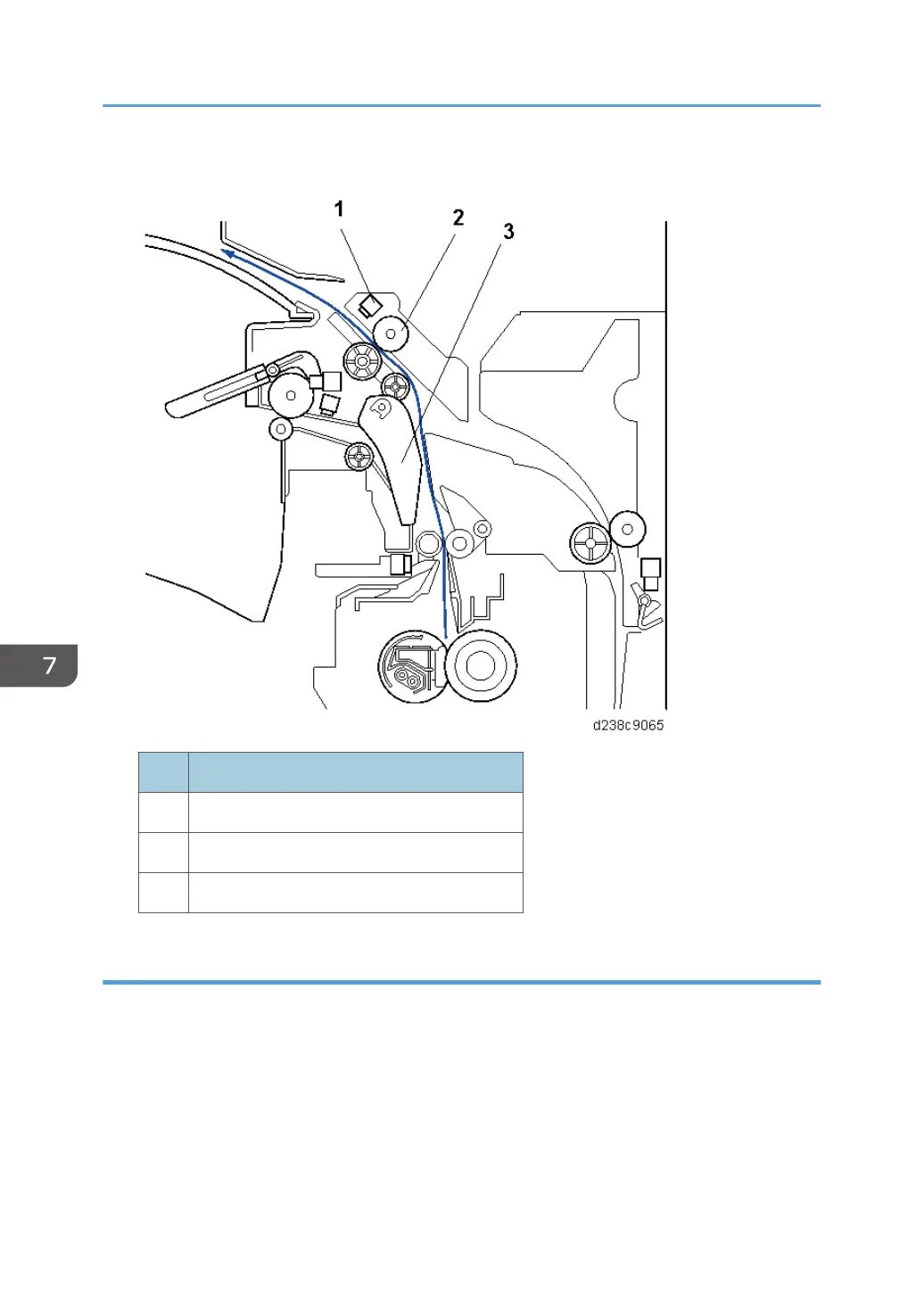

No. Description
1 Reverse sensor
2 Reverse roller
3 Paper exit junction gate
Paper exit full detection/paper exit jam detection
Paper exit full detection
This machine has a paper exit full sensor.
When the paper exit is full, the sensor switches OFF (blocked) due to a feeler.
When the paper exit full sensor detects paper full and a job is stopped, the message "Please
remove paper from the MFP tray" is displayed on the control panel.
Paper exit jam detection
Paper exit jam is detected by the paper exit sensor.
