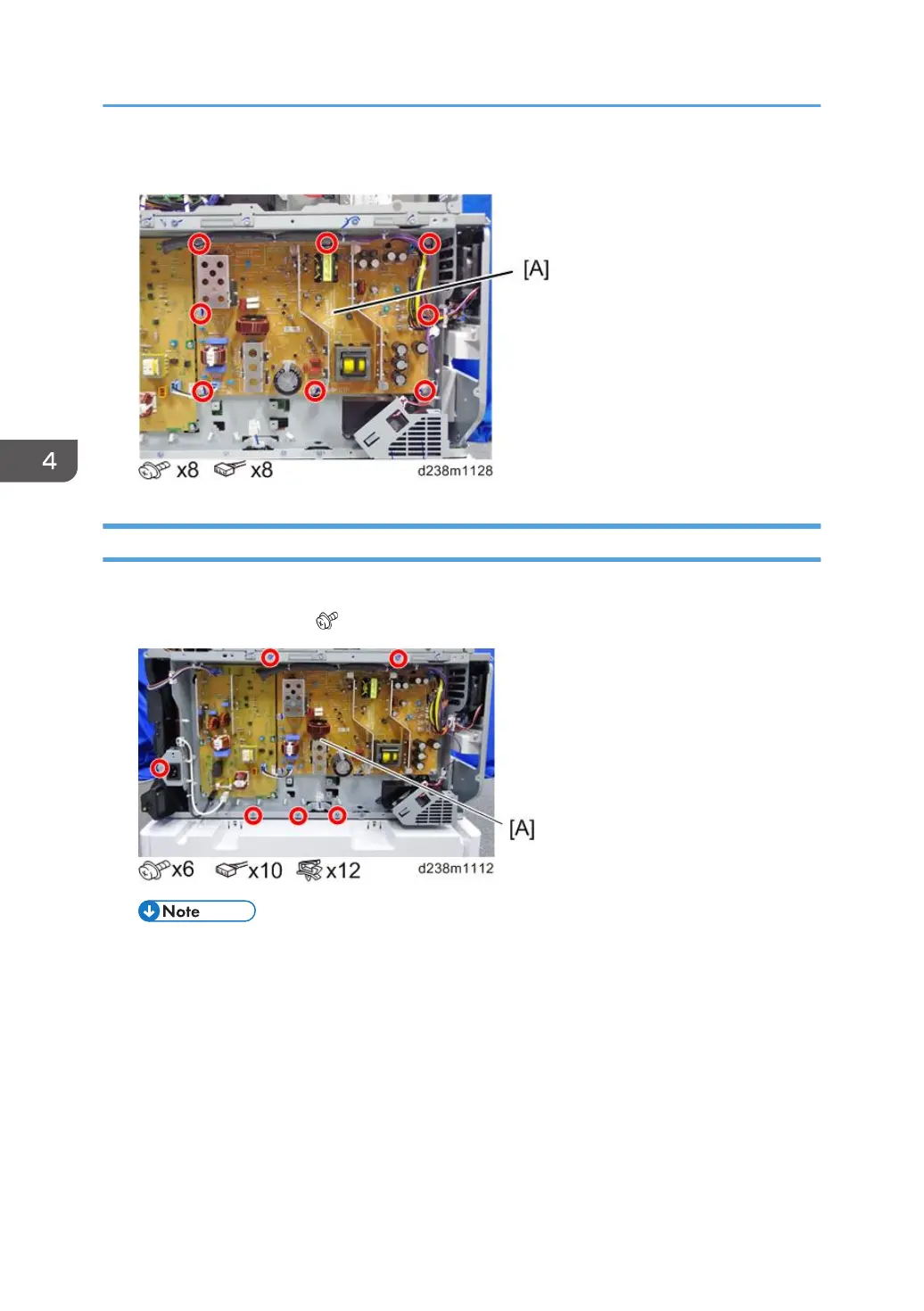

2. PSU (DC Power) [A]

Paper Transport IOB

1. Rear lower cover (page 500)

2. Power supply box [A] ( x6, Among them, tapping screw x1)

• You can hang the power box [A] on the machine by using 3 tabs.

4. Replacement and Adjustment

704
