Pressure release mechanism
To easily remove paper in the event of a jam in the fusing unit, a pressure release mechanism is
provided.

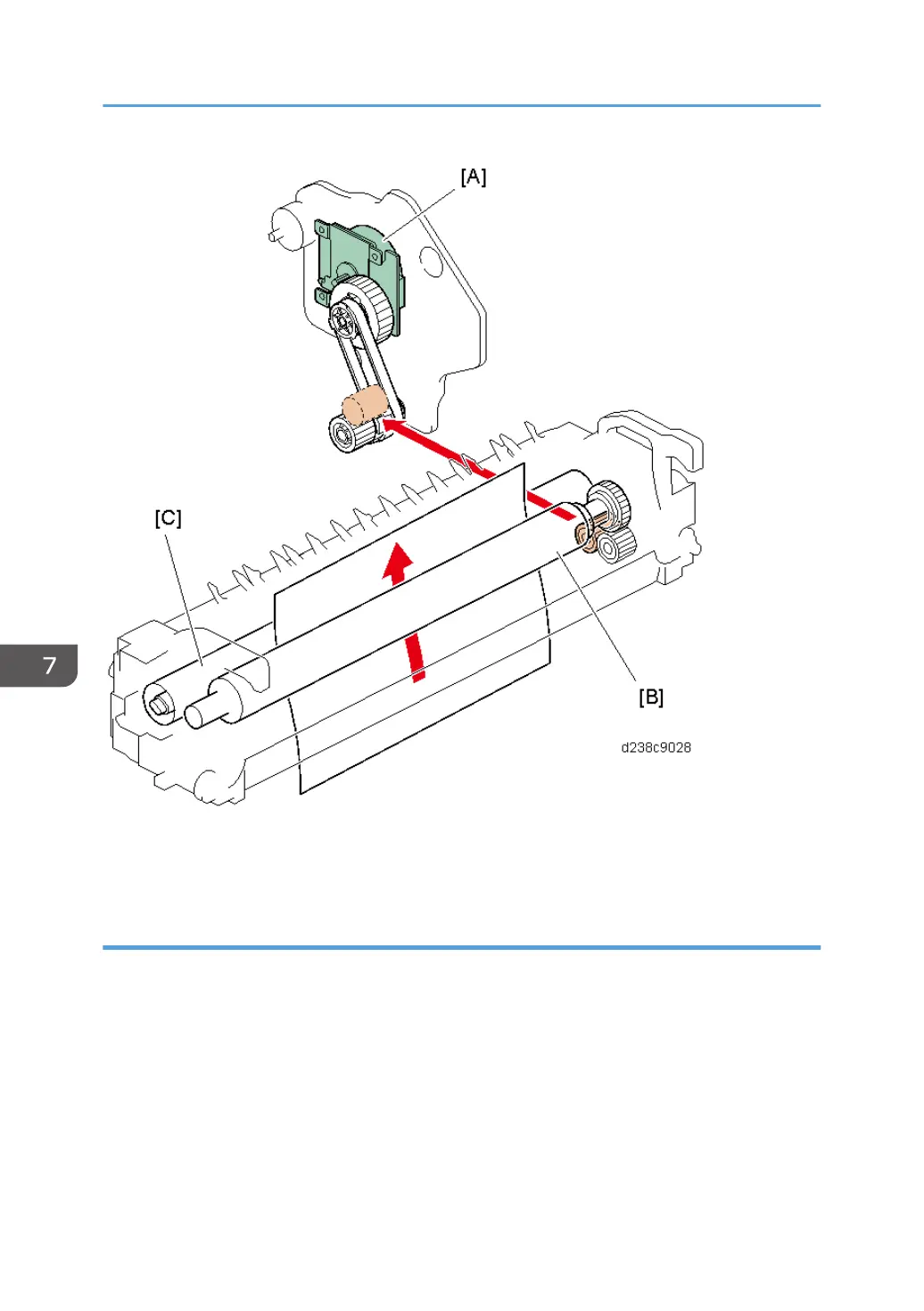

A pressure lever [C] is released by the drive of the Paper exit/pressure release motor [A], and the
Pressure roller [D] separates from the Fusing belt.
The pressure roller HP sensor [E] detects the encoder [B], and determines the position of the Pressure
roller.
After replacing the Pressure roller, if the sensor does not detect the encoder for 3 times continuously after
a job is completed, SC569-00 (Paper Exit/ Pressure Release Motor Error Detection) is generated.
7. Detailed Descriptions
