How to place the Paper Feed Unit PB3150 on the caster table

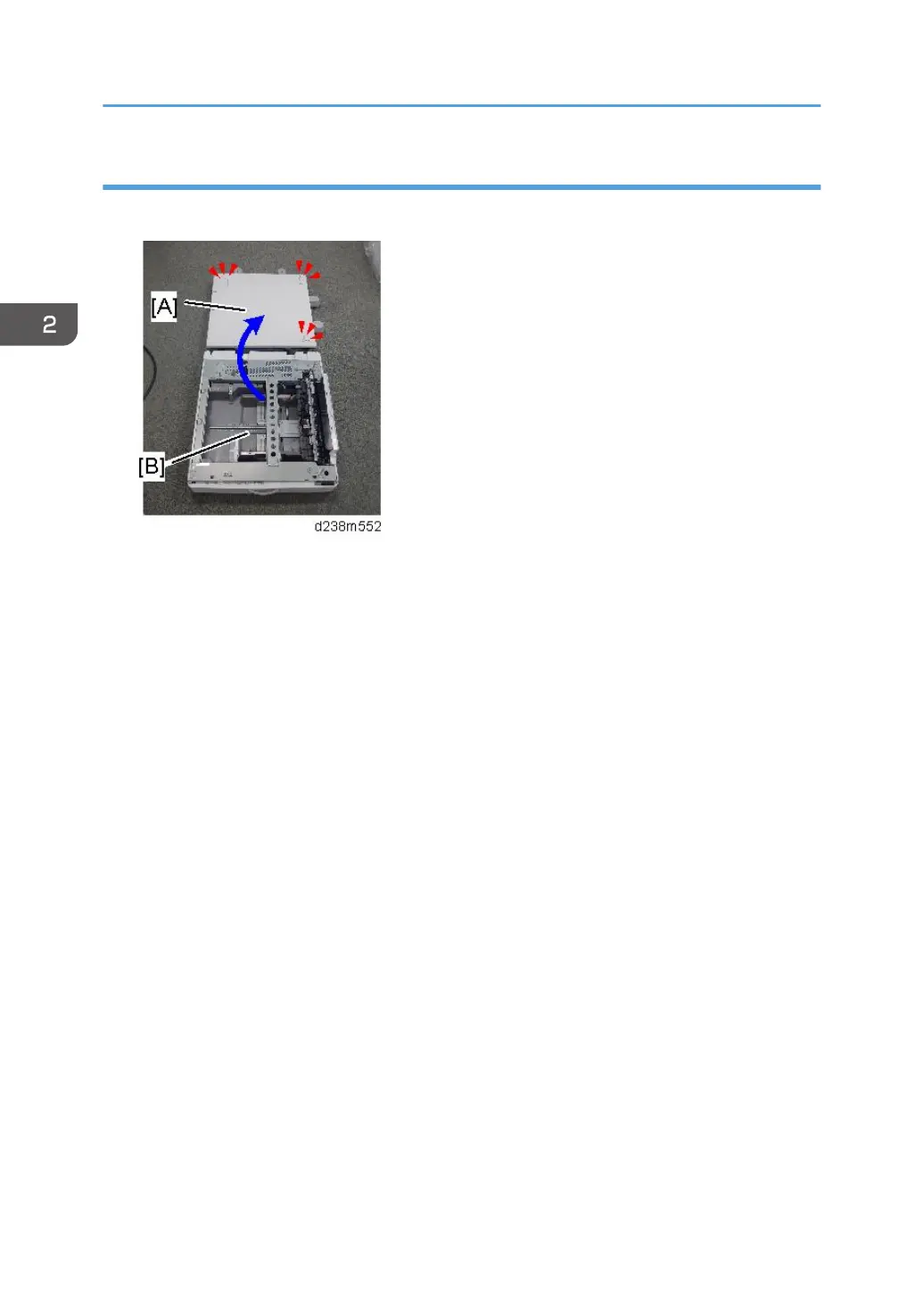

1. Place the paper feed unit [B] on the caster table [A].
2. Pull out the 1st paper feed tray.
3. Using a securing bracket, fix the caster table to the paper tray unit (spring washer: screw:
M4×10: 1).
4. Attach the securing brackets at 2 positions to left and right at the rear of the machine
(screws: 1 each).
5. Reattach the paper feed tray.
