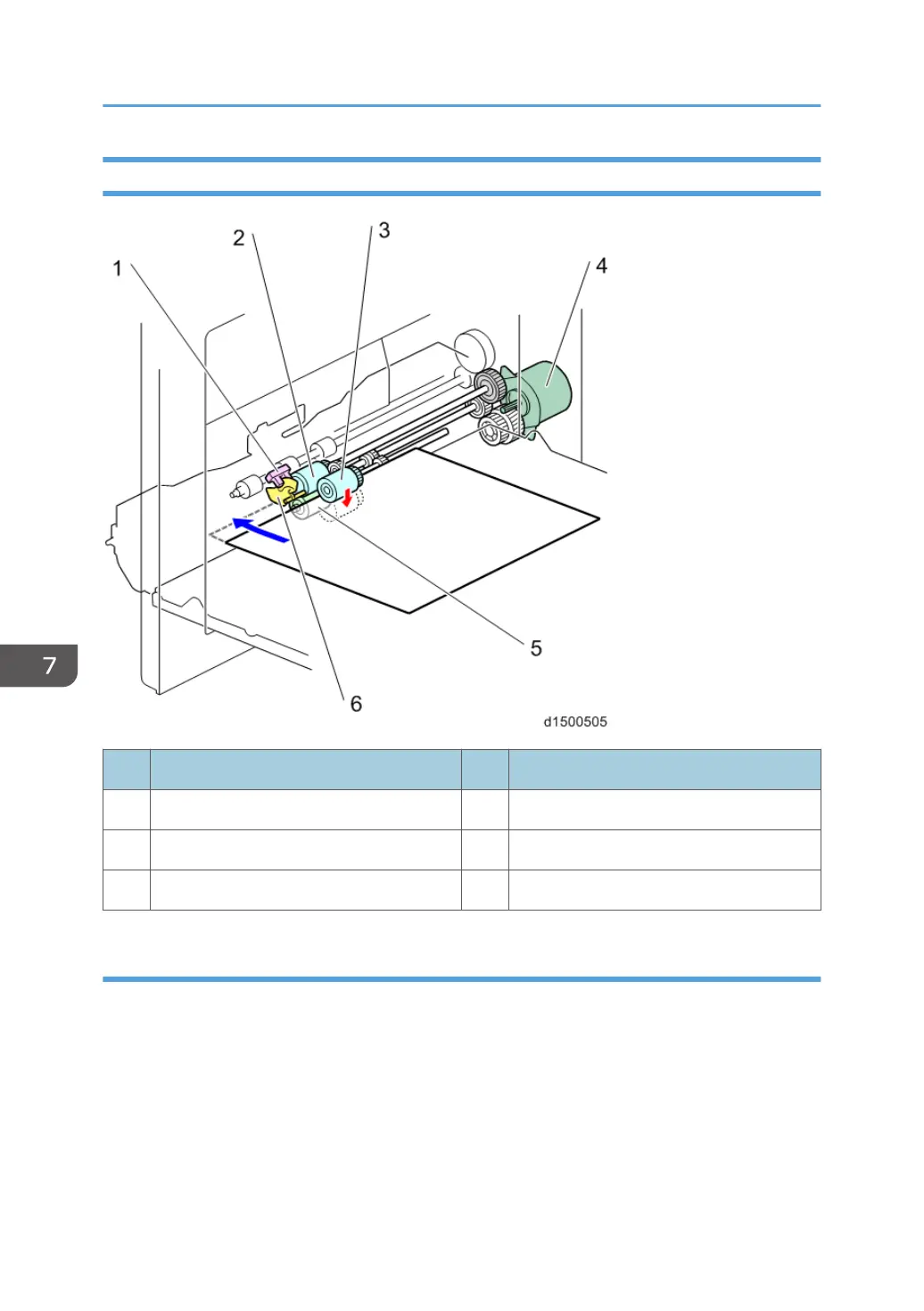

By-pass feed section
No. Description No. Description
1 Manual feed lever end sensor 4 By-pass/Duplex motor
2 By-pass paper feed roller 5 By-pass/ Reverse roller
3 By-pass pick-up roller 6 Paper detection filler
By-pass feed paper/separation mechanism
The bypass paper feed mechanism employs an FRR system. The bypass paper feed unit comprises a
paper feed roller, reverse roller and pick-up roller.
When the paper feed tray is selected and the machine is started, the bypass pick-up solenoid is switched
OFF, and paper is supplied by the By-pass/Duplex motor (CCW).
In standby mode, the bypass pick-up roller is not in contact with the paper surface. This is opposite to the
paper feed tray.
7. Detailed Descriptions
