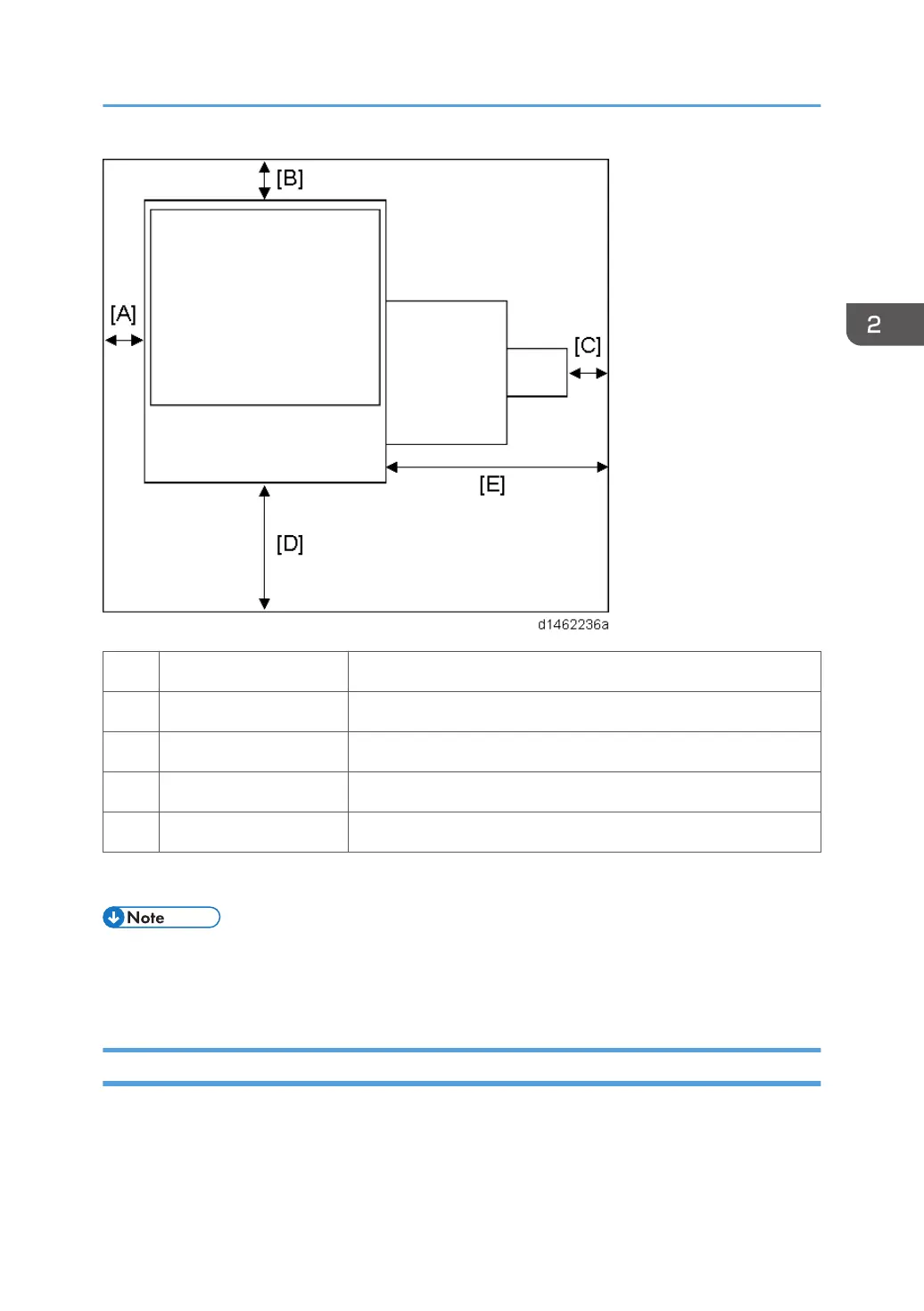

[A] Left Over 100 mm (3.9")
[B] Rear Over 100 mm (3.9")
[C] Right with Bypass tray Over 100 mm (3.9")
[D] Front Over 750 mm (29.5")
[E] Right Over 500 mm (19.7")
Put the machine near the power source with the clearance shown above.
• Main Machine Occupation Dimensions (W x D):
1149 mm (45.24") x 1236 mm (48.67") (With Bypass table opened + Main unit paper exit
drawer)
Machine Dimensions
In the following figure, MP C4504 is equipped with Paper Feed Unit PB3160, Bridge Unit BU3070,
Finisher SR3210, and LCIT RT3030.
