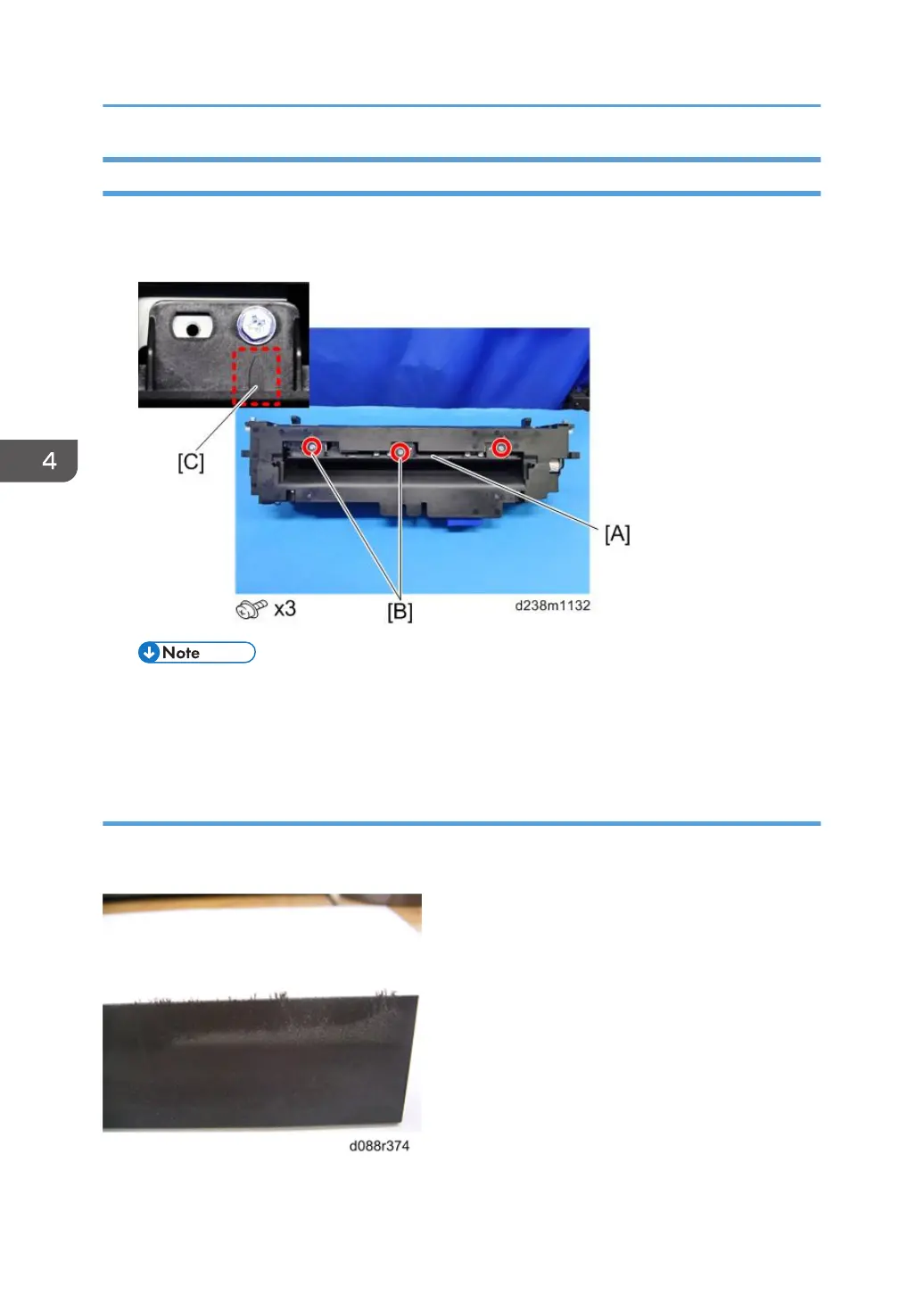

Fusing Entrance Guide Plate
1. Fusing unit (page 625)
2. Fusing entrance guide plate [A]
• The screws [B] are threaded screws. When you assemble the unit, take care not to use the
wrong screws.
• Fasten the screw in the marked screw hole [C].
Cleaning the Fusing Entrance Guide Plate
Carefully remove adhering toner as shown in the diagram below with a dry cloth. Then, wipe with a
cloth moistened with alcohol.
4. Replacement and Adjustment
626
