Ricoh MP C3004 - Development Motor: CMY

To Next Page

To Previous Page

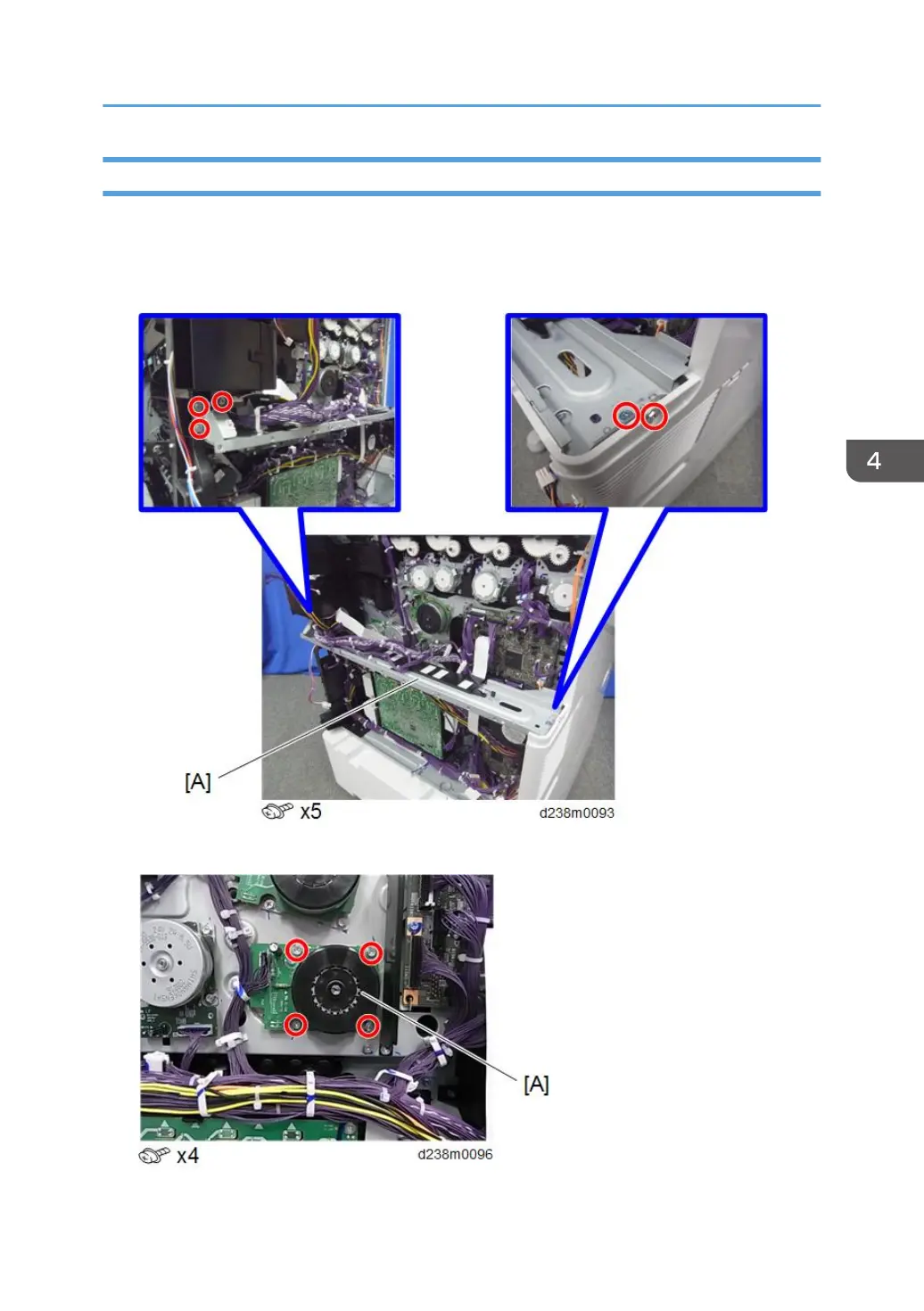

Development Motor: CMY

1. Paper transfer contact motor unit (page 605)

2. Power supply box (page 704)

3. Bracket [A]

4. Development Motor: CMY [A]

Drive Unit

609
