Ricoh MP C3004 - Installing a New Laser Unit

To Next Page

To Previous Page

Installing a New Laser Unit

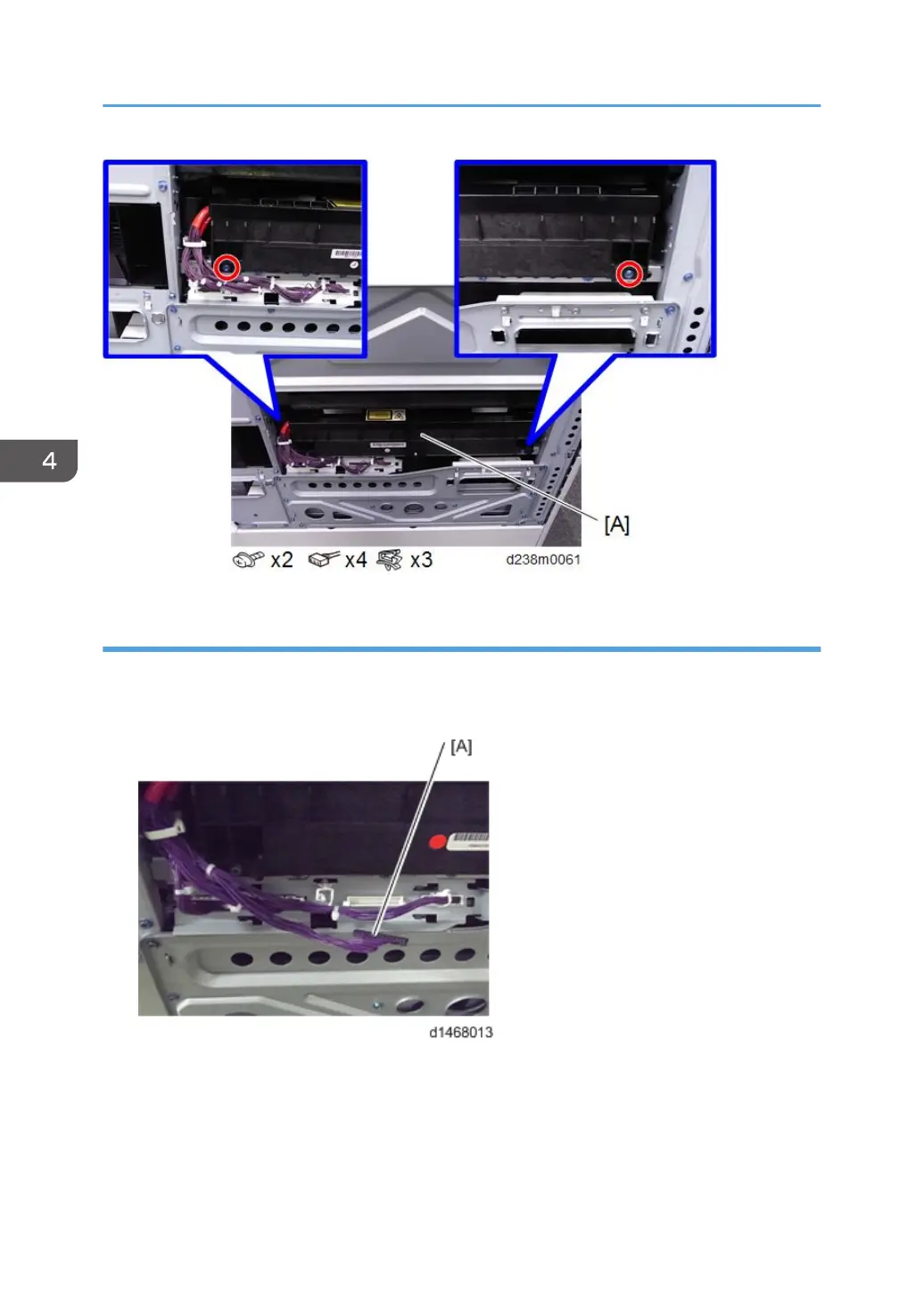

1. Insert the new laser unit in the main body carefully.

2. Connect all harnesses except the skew correction motor harness [A] (2nd from right).

3. Reassemble the machine.

4. Replacement and Adjustment

542
