Ricoh MP C3004 - Paper Transfer Roller

To Next Page

To Previous Page

Paper Transfer Roller

1. Open the paper transfer unit. (page 587)

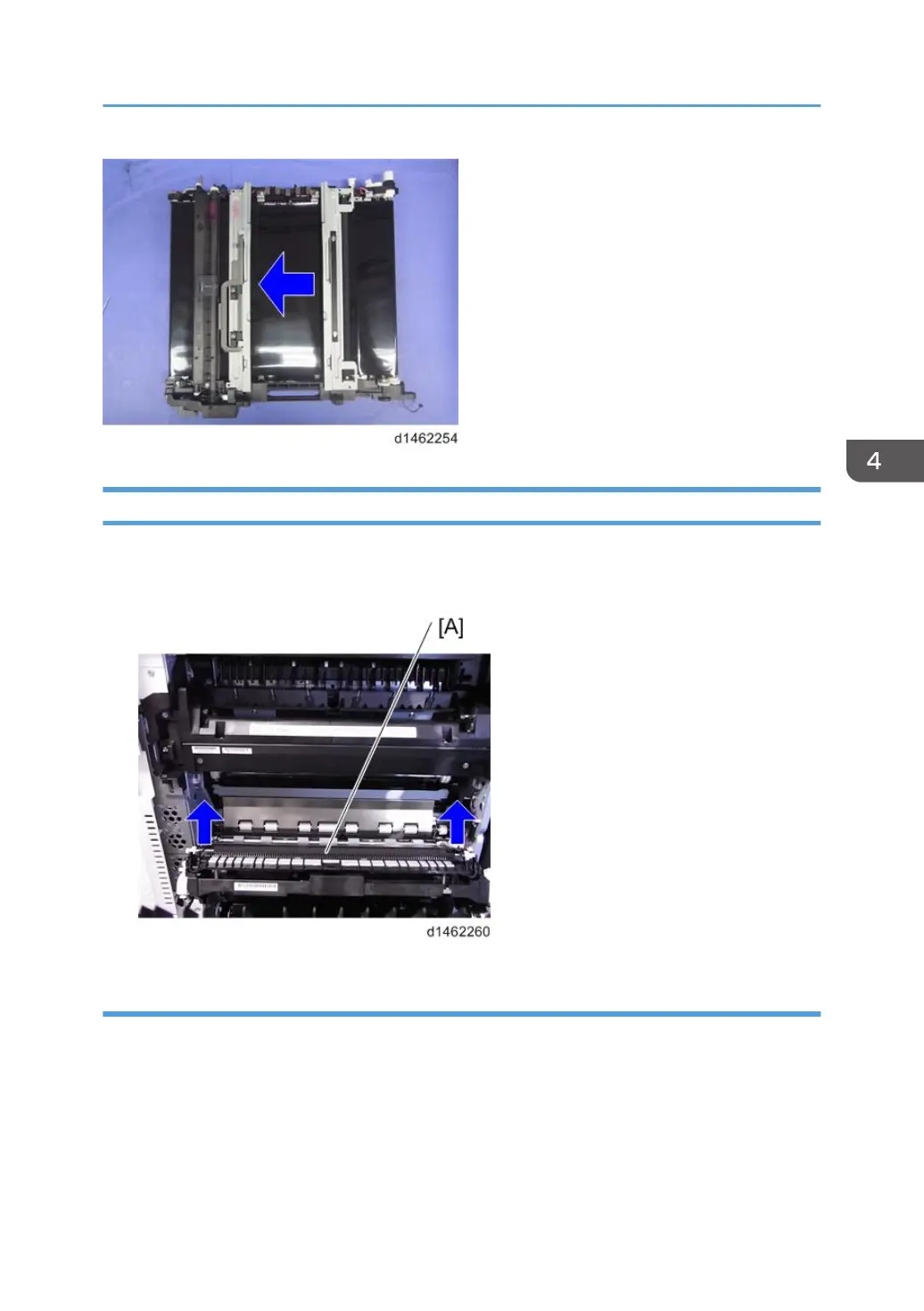

2. Paper transfer roller [A]

When reinstalling the paper transfer roller

When reinstalling the paper transfer roller, do not install the wrong type of roller.

Image Transfer Unit
