Ricoh MP C3004 - USB Cable

To Next Page

To Previous Page

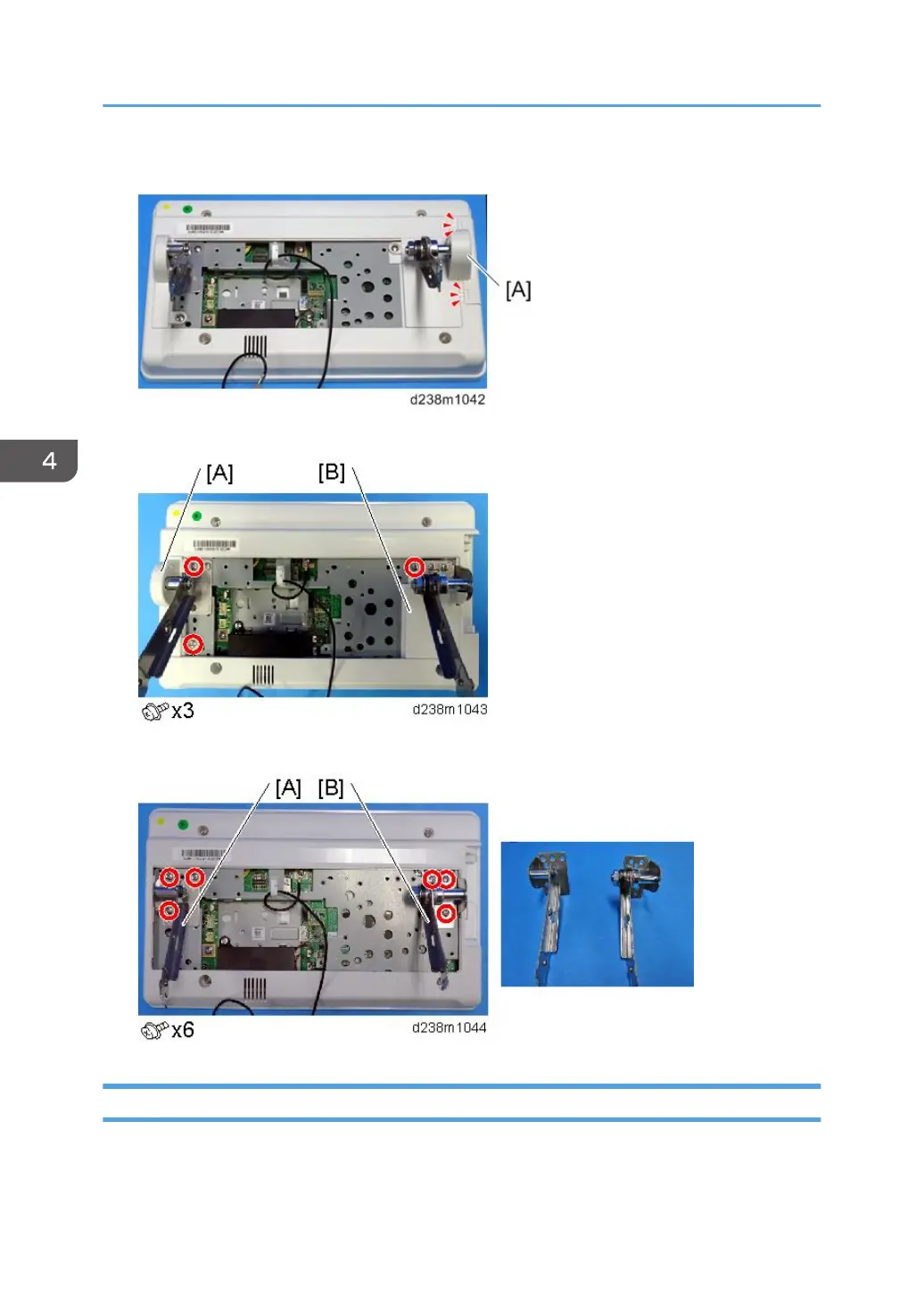

9. Right hinge cover [A] (Hook x 2)

10. Left hinge cover [A], right cover [B]

11. Hinges [A] [B]

USB Cable

1. Rear cover (page 499)

2. Scanner right cover (page 521)

4. Replacement and Adjustment

514
