When SC549 (Shield Operation Error Detection) is Displayed

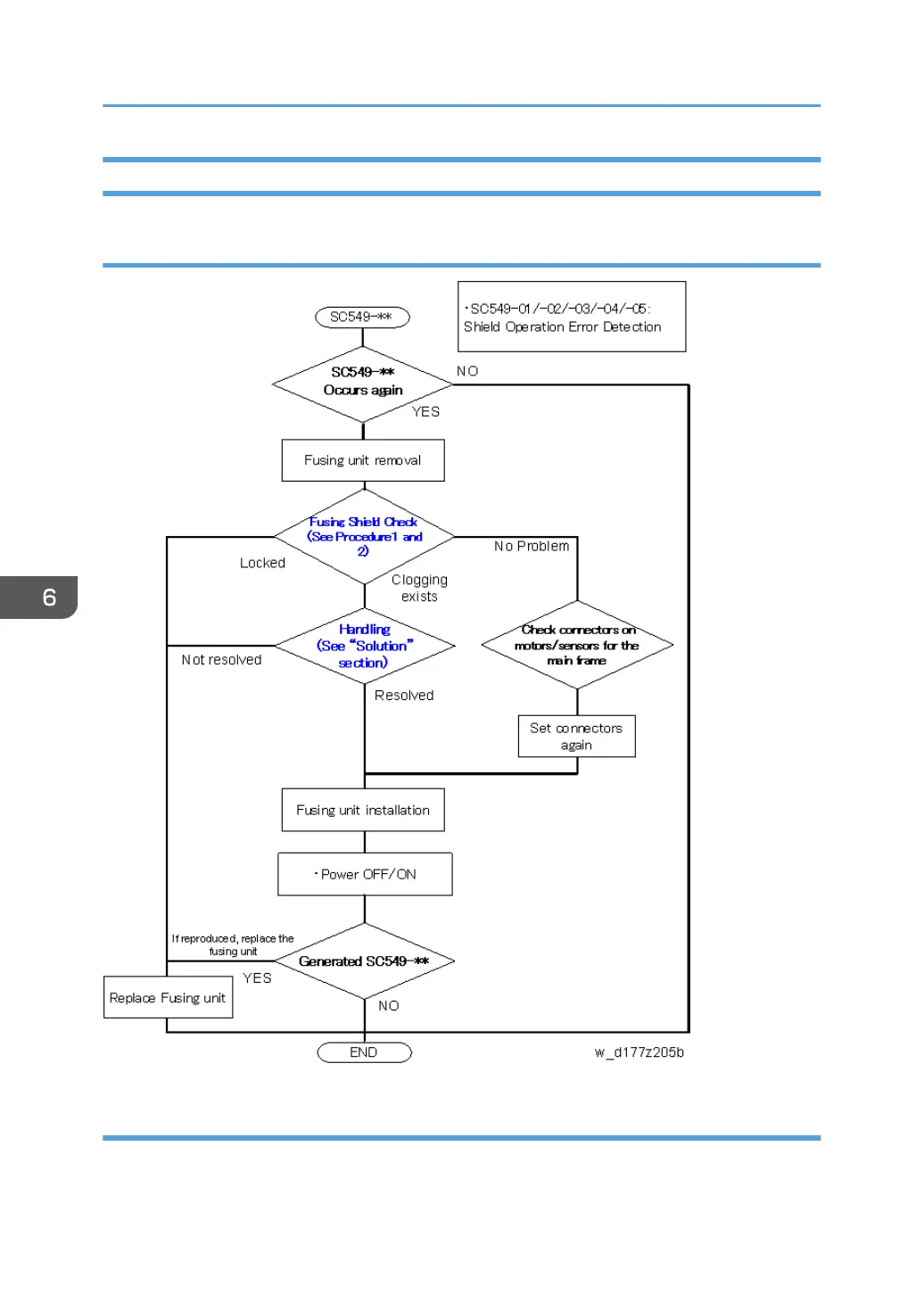

Troubleshooting Flowchart

Fusing Shield Check

Procedure 1: Operation check for the lower side of the shield detection feeler

1. Place the fusing unit on a flat place and tilt it towards the drawer connector [A].

6. Troubleshooting

1060
