Ricoh MP C3004 - Waste Toner; Replacement

To Next Page

To Previous Page

Waste Toner

Replacement

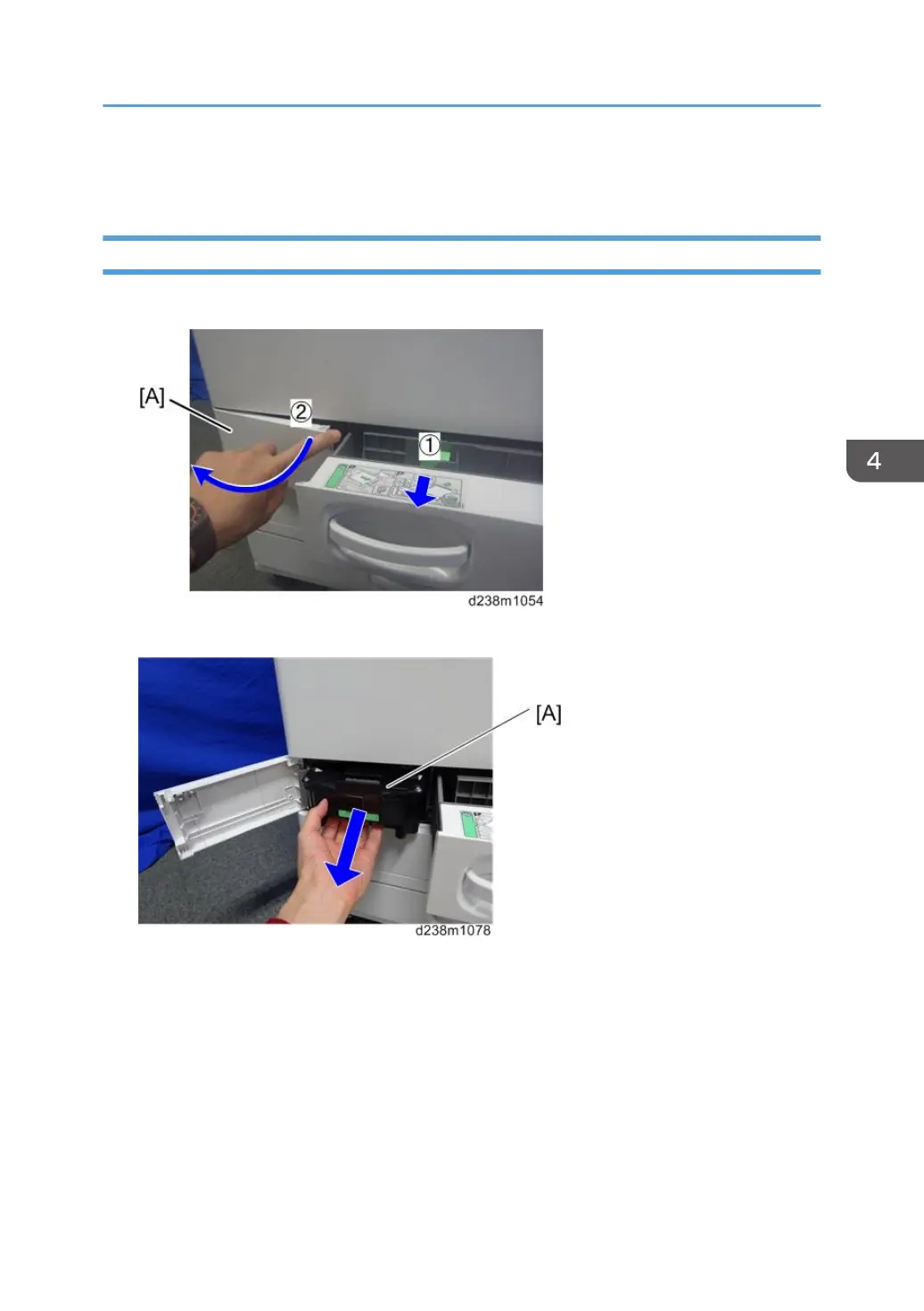

1. Open the waste toner cover [A].

2. Pull out the waste toner bottle [A].

3. Replace the waste toner bottle.

The counter for the Waste Toner Bottle is reset automatically.

Waste Toner

565
