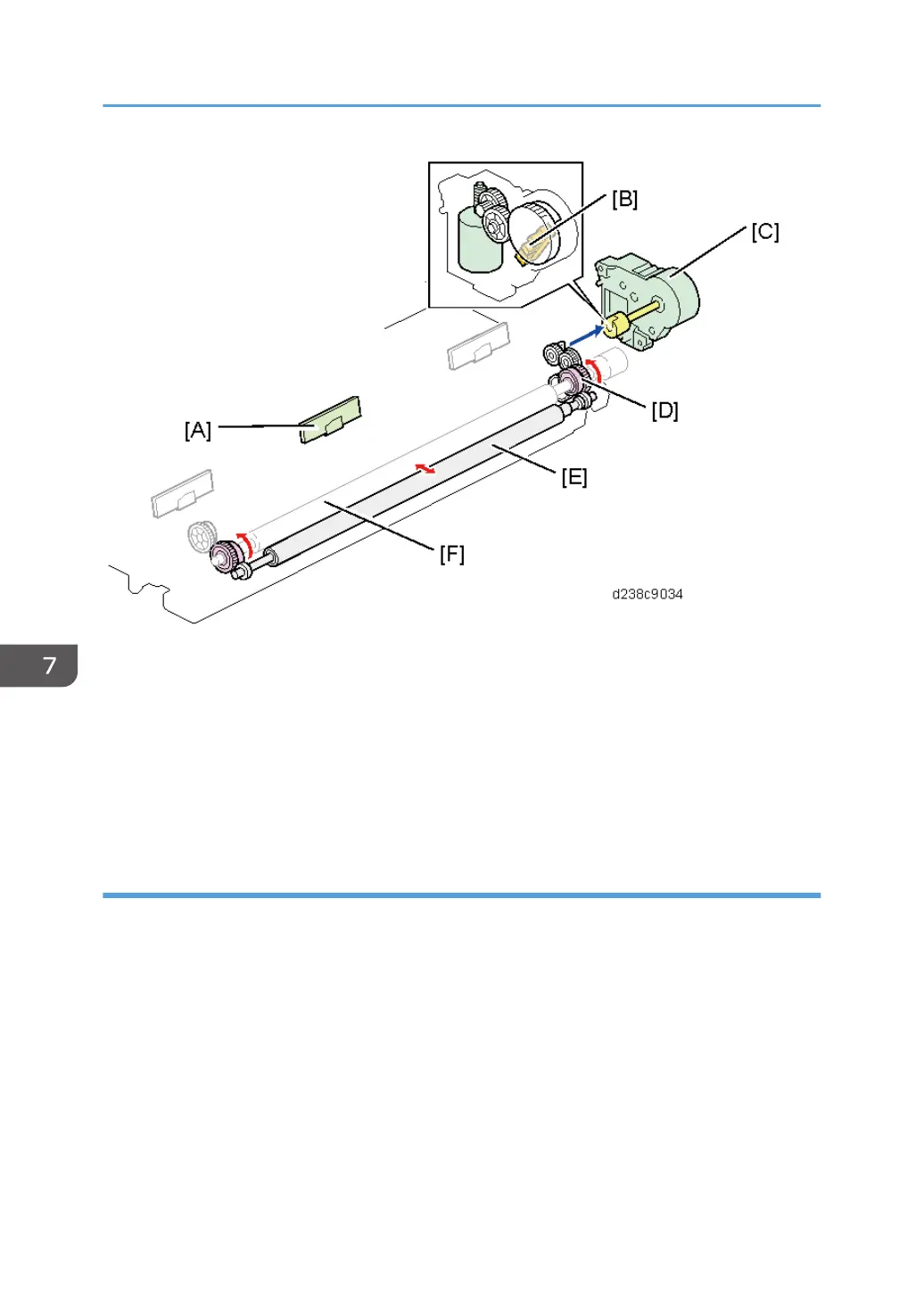

[A]: TM/ID sensor (center)
[B]: Paper transfer roller Home Position sensor
[C]: Paper transfer contact and release motor
[D]: Cam
[E]: Paper transfer roller
[F]: Image transfer drive roller
Separation
To achieve paper separation, a curvature separation method which separates the Paper transfer roller
and Image transfer belt is employed.
