Ricoh MP C3004 - Removing Wrinkling in the Tray

Removing Wrinkling in the Tray

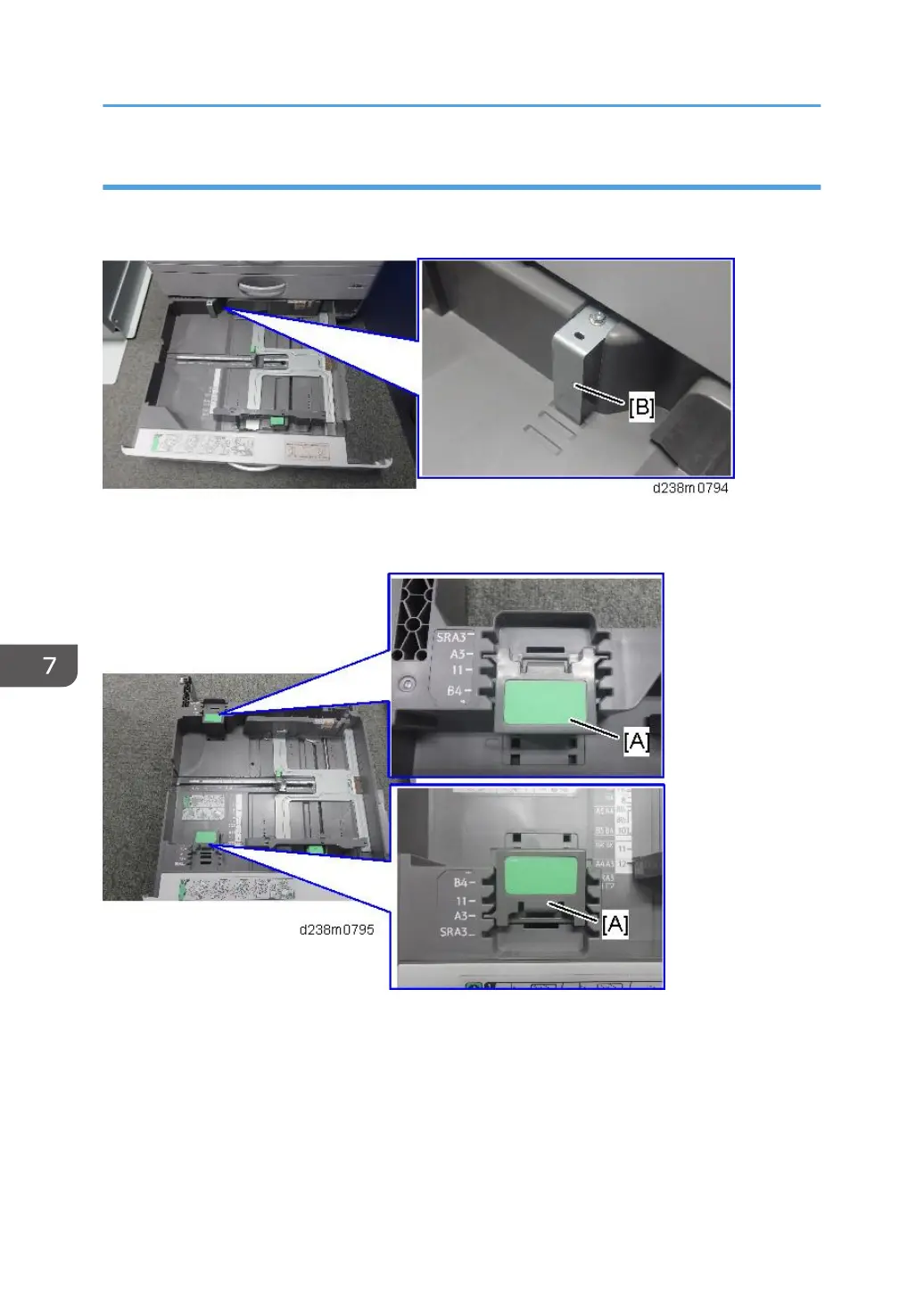

When paper larger than A3 is set, wrinkles may appear at the end of the paper. As a countermeasure,
the previous machine used an L-shaped sheet metal [B].
In this machine, the support components [A] and a decal are attached, which are also available to the
end-user.
For small size paper, the side fences [B] are sufficient because the paper is light,
but paper larger than A3 must be set at the position indicated by the decal.
7. Detailed Descriptions
1290
