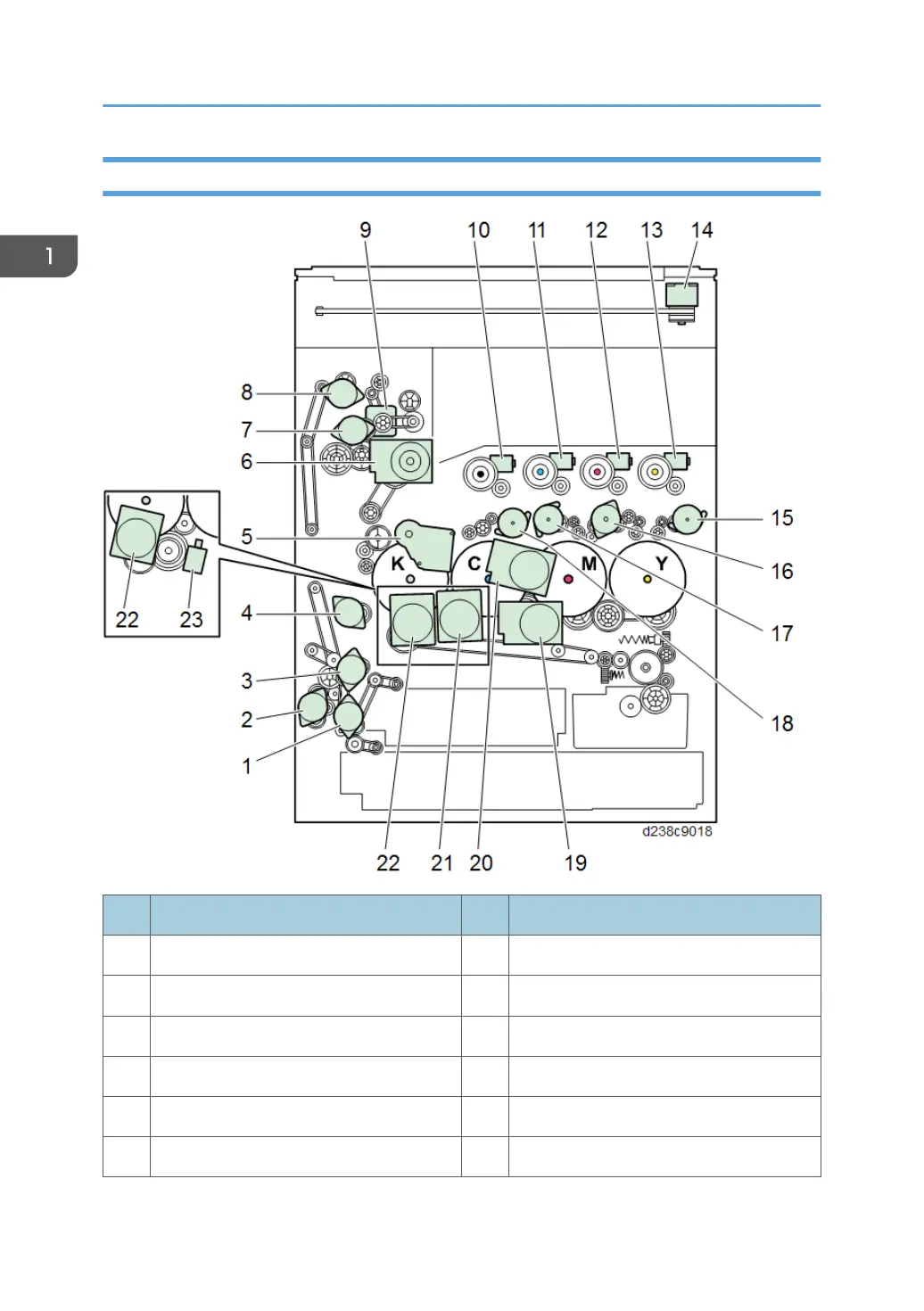

Drive Layout
No. Description No. Description
1 Paper feed motor 13 Toner bottle drive motor (Y)
2 Duplex / Bypass motor 14 Scanner motor
3 Transport motor 15 Toner transport motor (Y)
4 Registration motor 16 Toner transport motor (M)
5 Paper transfer contact motor 17 Toner transport motor (C)
6 Fusing motor 18 Toner transport motor (Bk)
1. Product Information
42
