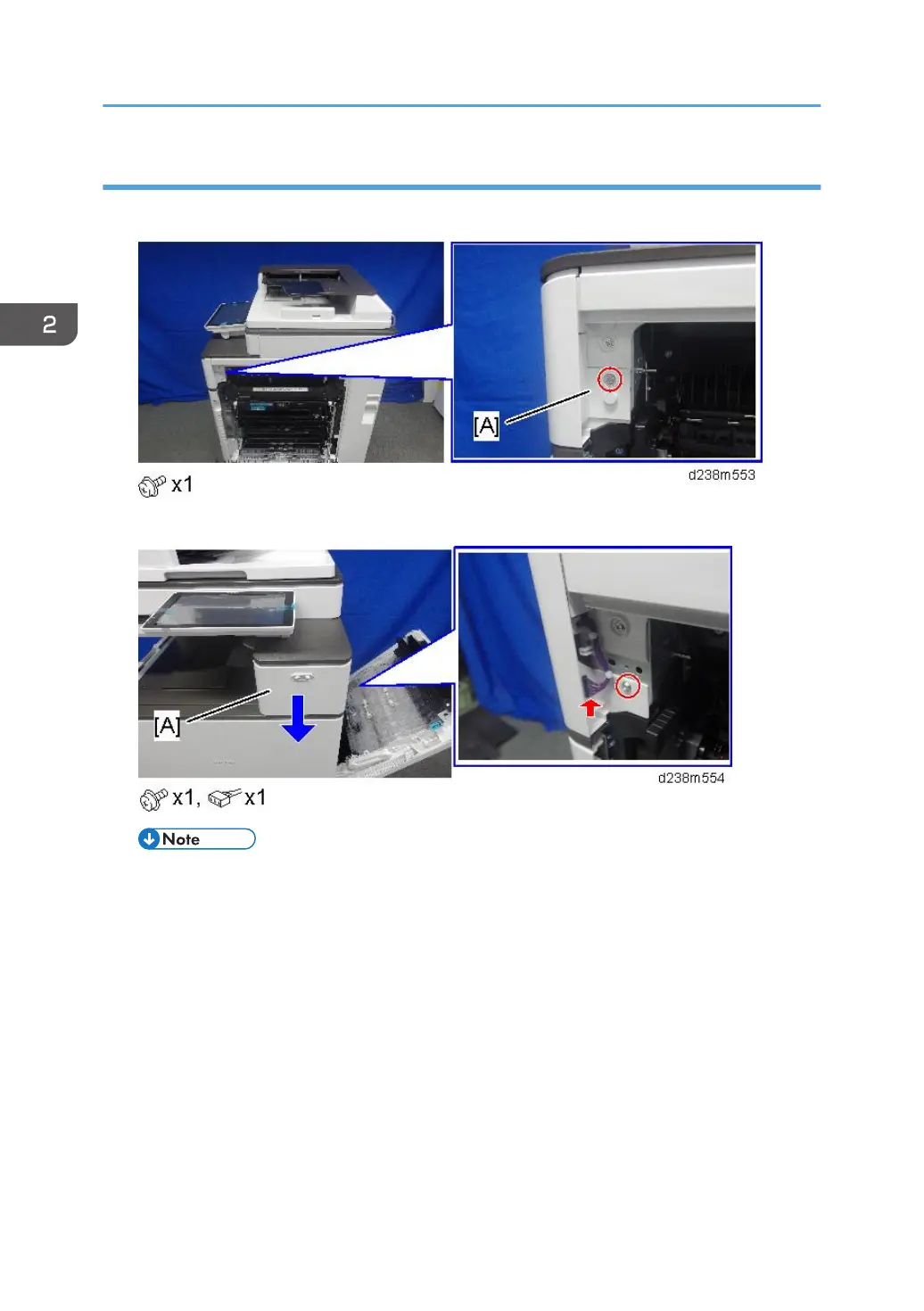

Procedure for Connecting to the Main Machine USB Slot
1. Open the right door, and then remove the small cover [A].
2. Remove the proximity sensor cover [A].
• Remember that there is a tab at the positions of the red arrows.
• Rotate the operation panel [B] upward to a horizontal position, and then detach the proximity
sensor cover [A].
2. Installation
412
