Ricoh MP C3004 - Cleaning the Fusing Exit Guide Plate; Fusing Upper Cover

To Next Page

To Previous Page

Cleaning the Fusing Exit Guide Plate

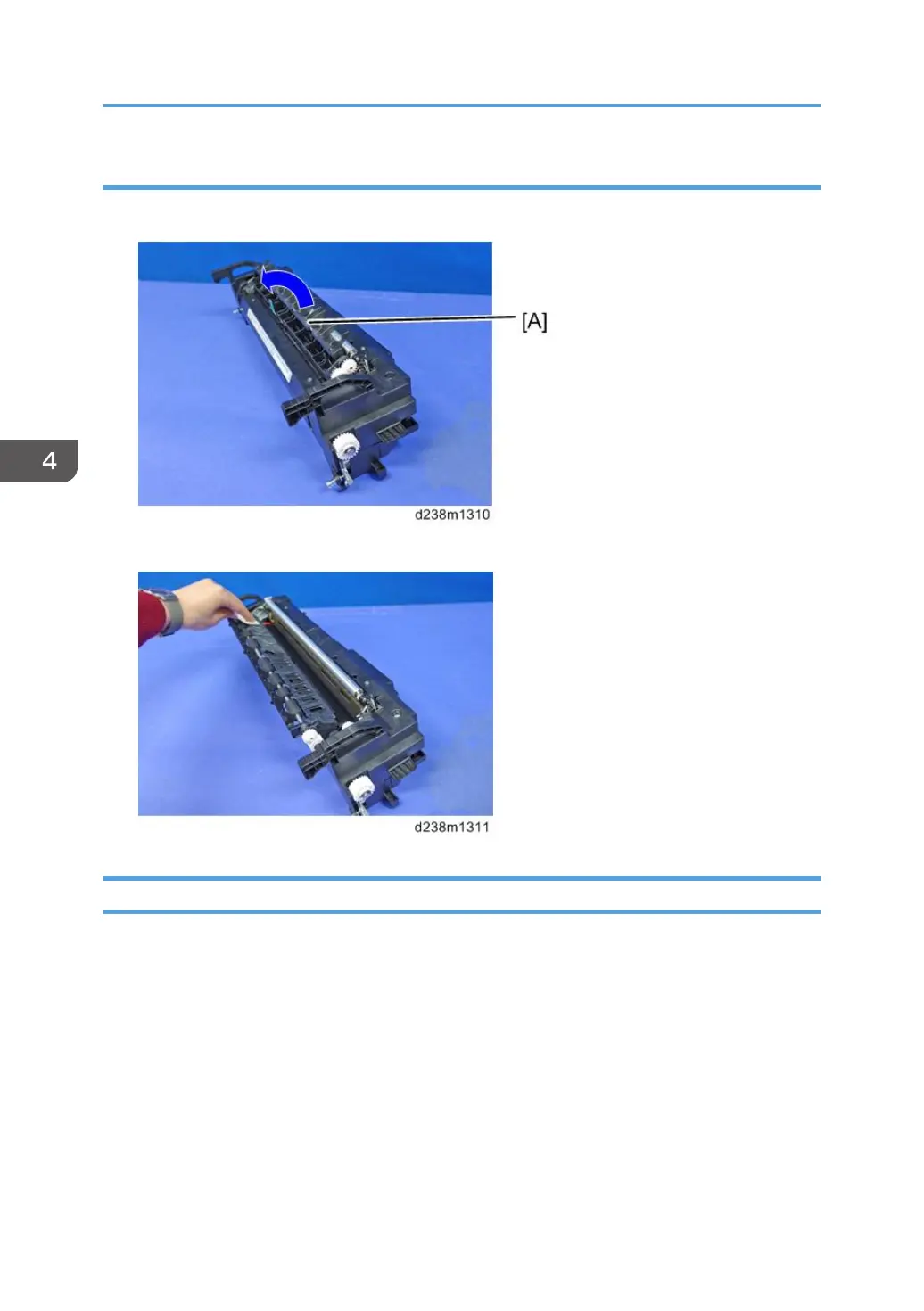

1. Open the fusing exit guide plate [A].

2. Wipe clean with a dry cloth. Then wipe clean with a cloth dampened with alcohol.

Fusing Upper Cover

1. Fusing unit (page 625)

4. Replacement and Adjustment

628
