Main Exhaust Fan (MP C4504/5504/6004)

1. Rear cover (page 499)

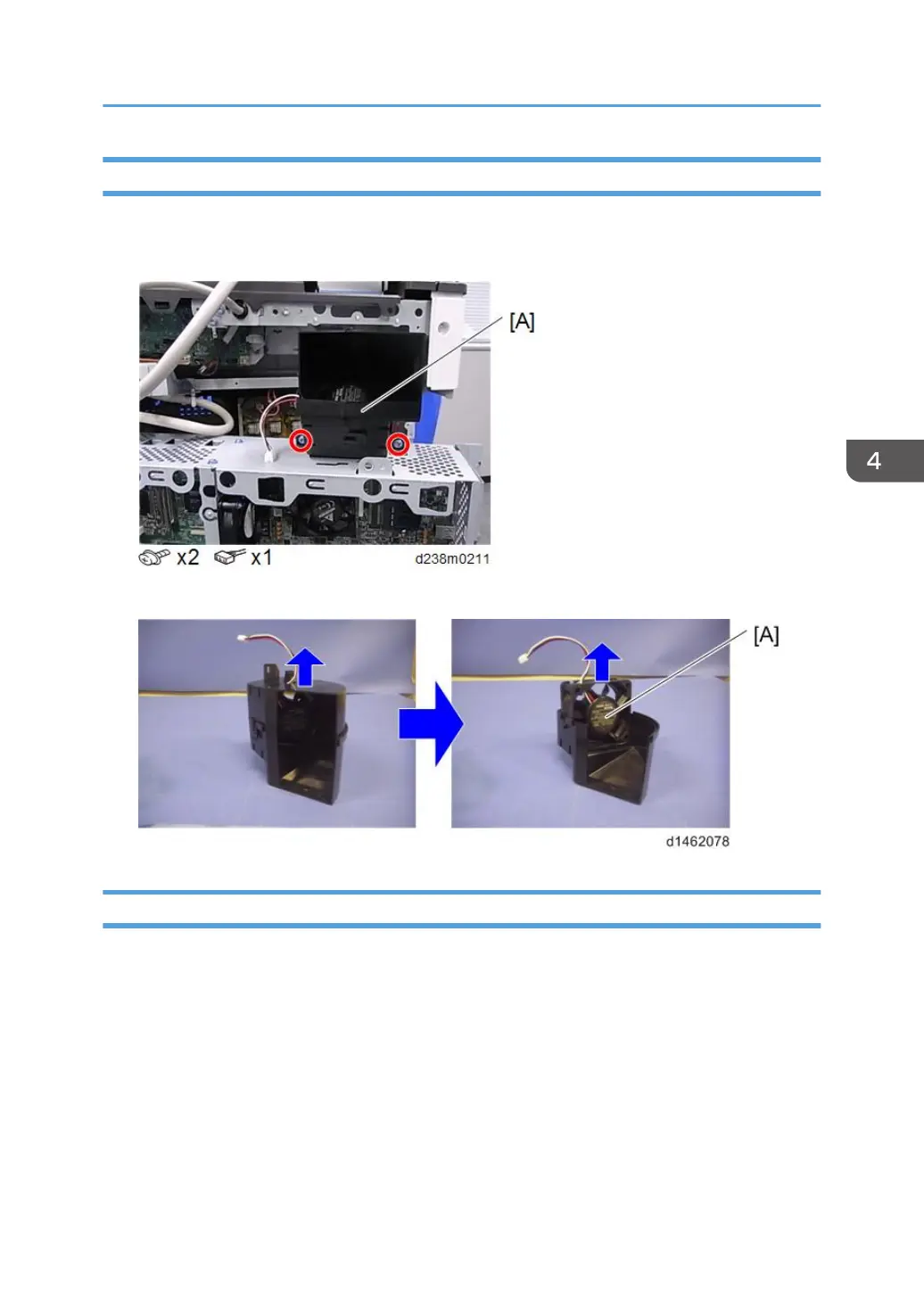

2. Main exhaust fan unit [A]

3. Main exhaust fan [A]

Toner Supply Cooling Fan

1. Rear cover (page 499)

2. Right rear cover (page 500)

3. Drive Cooling Fan (For MP C4504/5504/6004) (page 714

Fans/Filters

715
