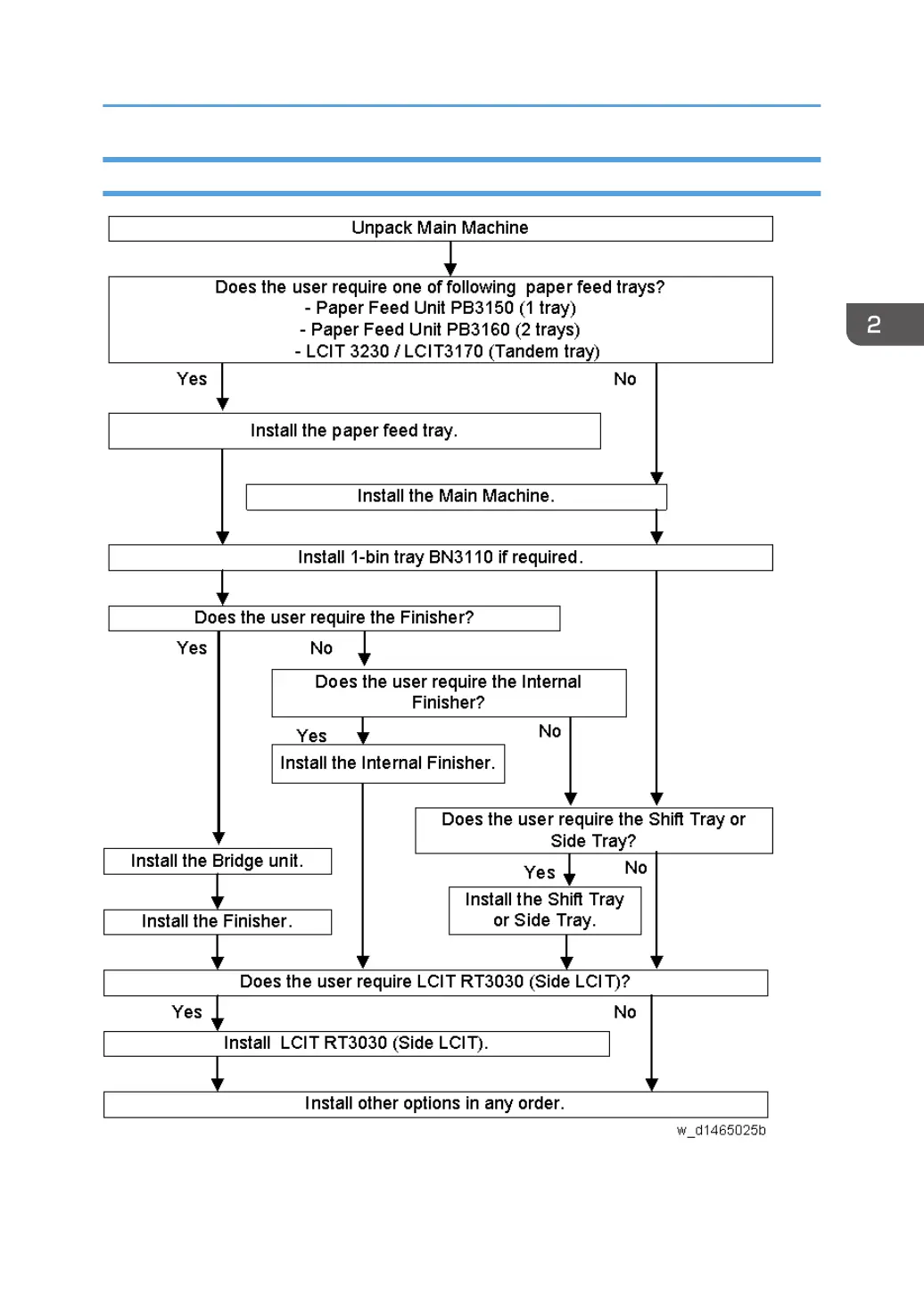

Installation Flow Chart

Put the machine on the paper feed tray (1 tray/2 trays) or the LCT (tandem tray) first, then install the

machine and other options.
