Ricoh MP C3004 - Bypass Tray Unit

To Next Page

To Previous Page

Bypass Tray Unit

Bypass Tray

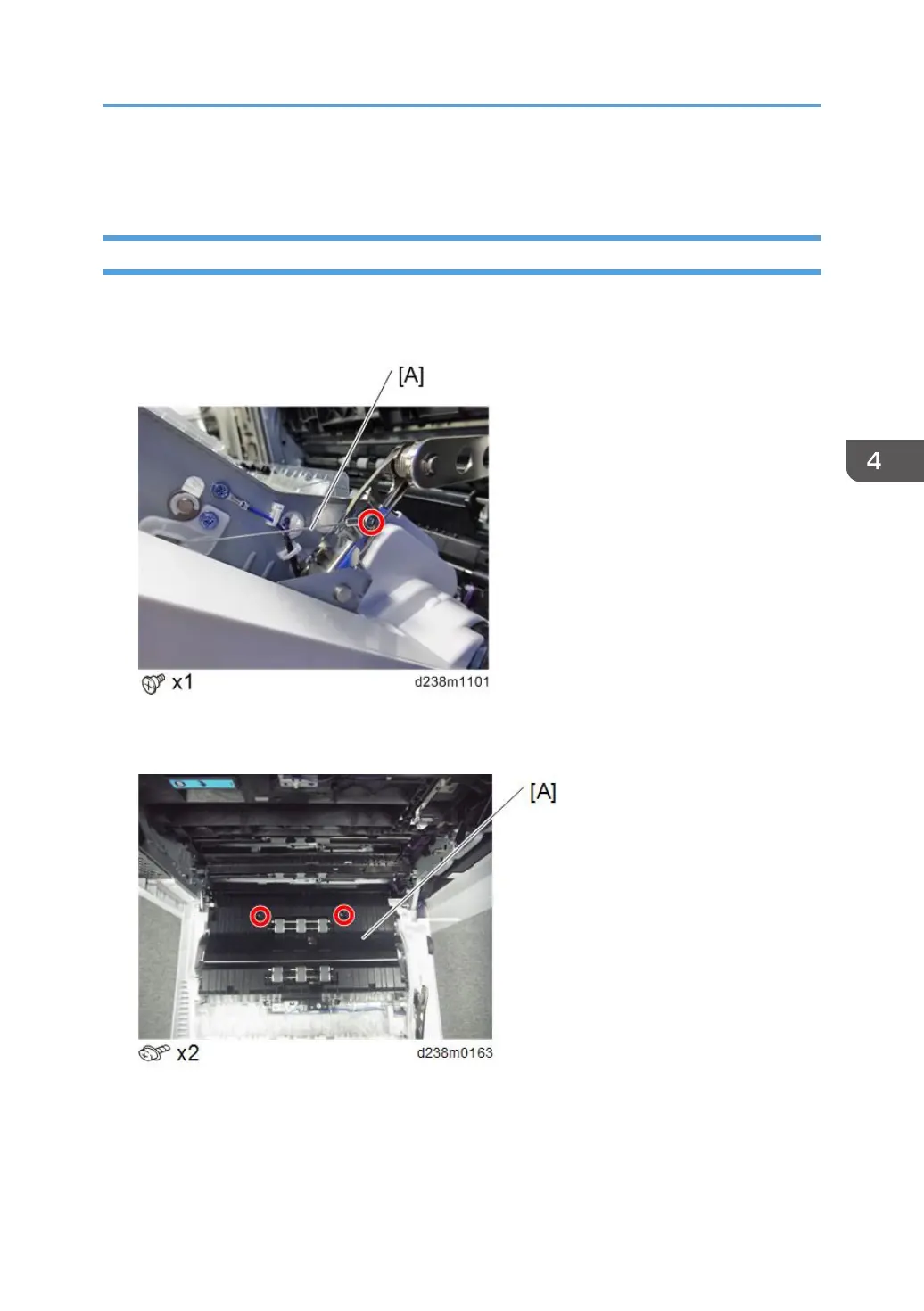

1. Open the right door. (page 676 "Duplex Unit")

2. Wire [A]

3. Open the right door wide. (page 652)

4. Paper transport guide [A]

Bypass Tray Unit

665
