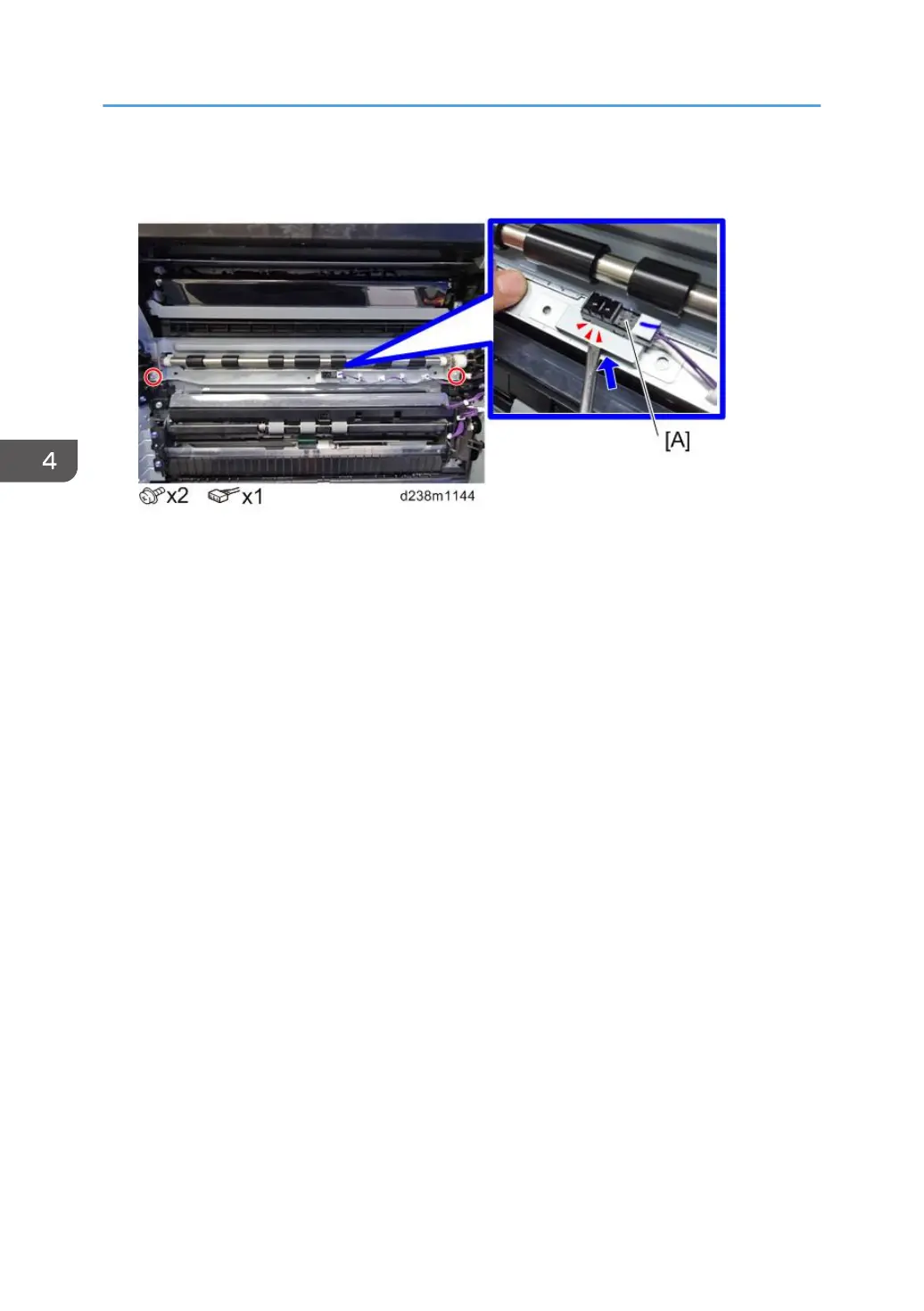

4. Remove two screws, then release the tab by inserting a flathead driver behind the

registration sensor [A].
