Ricoh MP C3004 - Paper Feed Unit

To Next Page

To Previous Page

No. Description No. Description

9 Toner transport motor (Y) 18 Waste toner bottle set switch

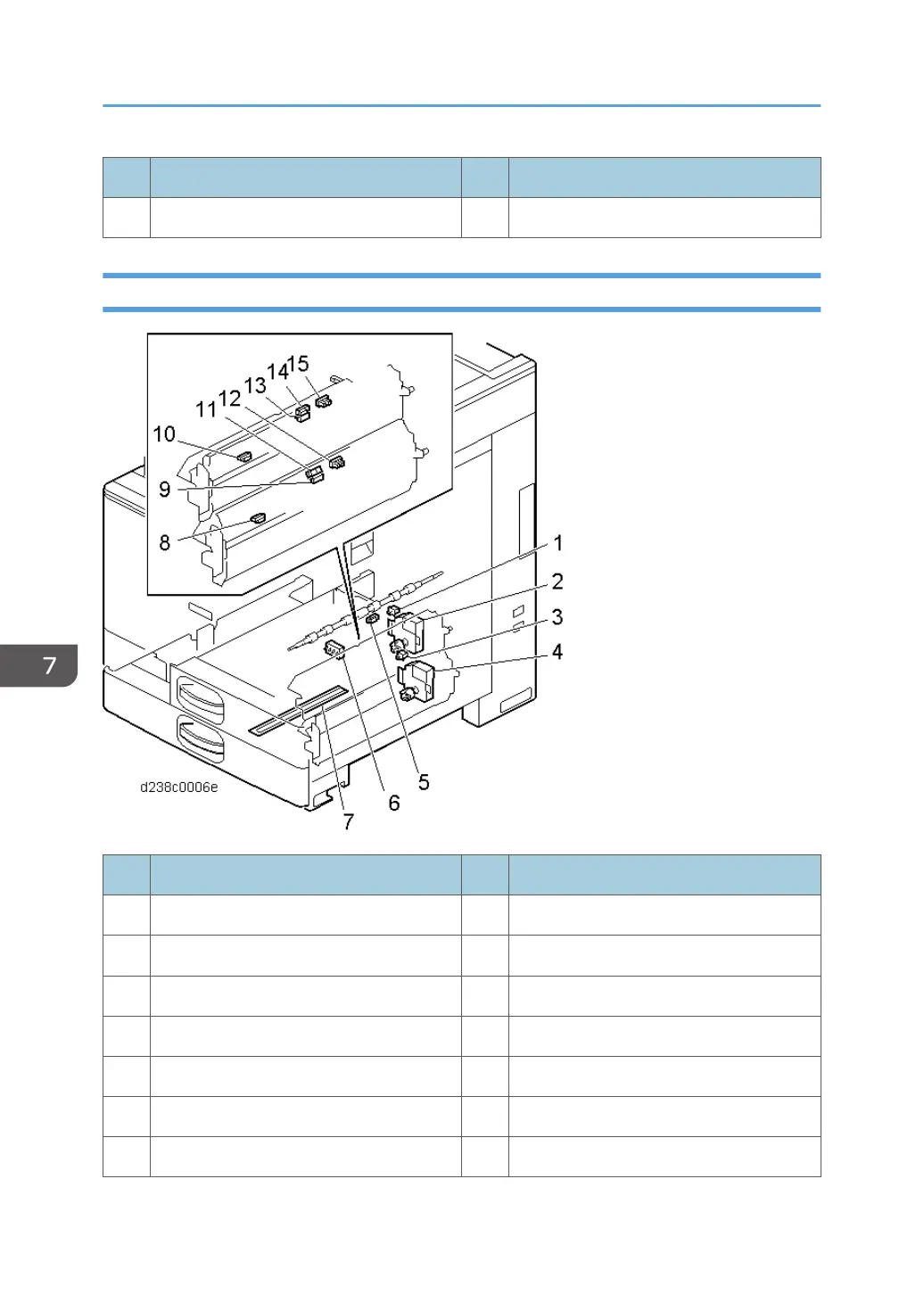

Paper Feed Unit

No. Description No. Description

1 Tray set switch (1st feed tray) 10 Paper feed sensor (1st feed tray)

2 Lift motor (1st feed tray) 11 Paper end sensor (2nd feed tray)

3 Tray set switch (2nd feed tray) 12 Limit sensor (2nd feed tray)

4 Lift motor (2nd feed tray) 13 Transport sensor (1st feed tray)

5 Registration sensor 14 Paper end sensor (1st feed tray)

6 Size switch (2nd Feed Tray) 15 Limit sensor (1st feed tray)

7 Anti-condensation heater
