Ricoh MP C3004 - Waste Toner Cover

To Next Page

To Previous Page

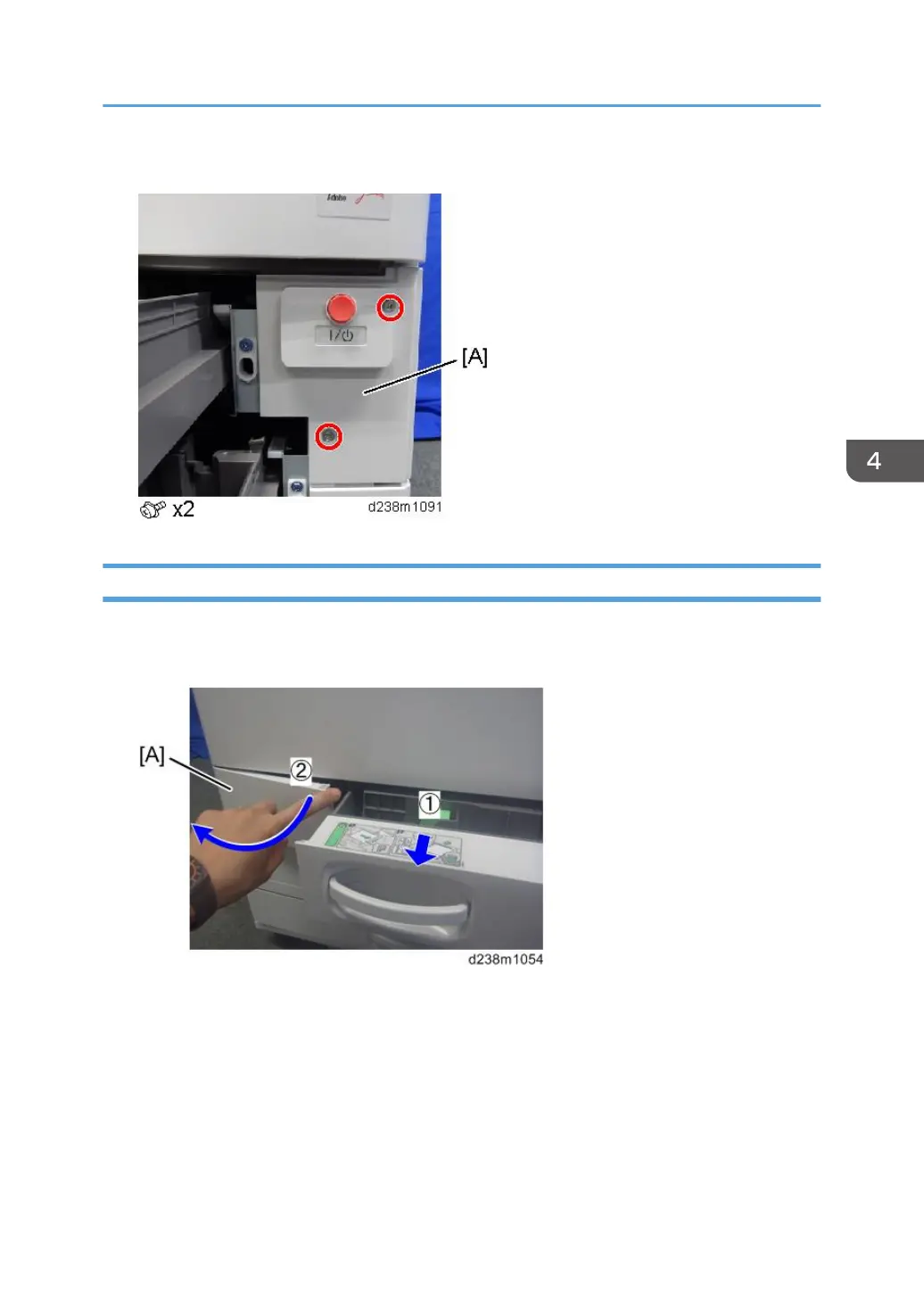

2. Main power switch cover [A].

Waste Toner Cover

1. Front cover (page 493)

2. Open the waste toner cover [A].

Exterior Covers

505
