Ricoh MP C3004 - Duplex Exit Sensor

To Next Page

To Previous Page

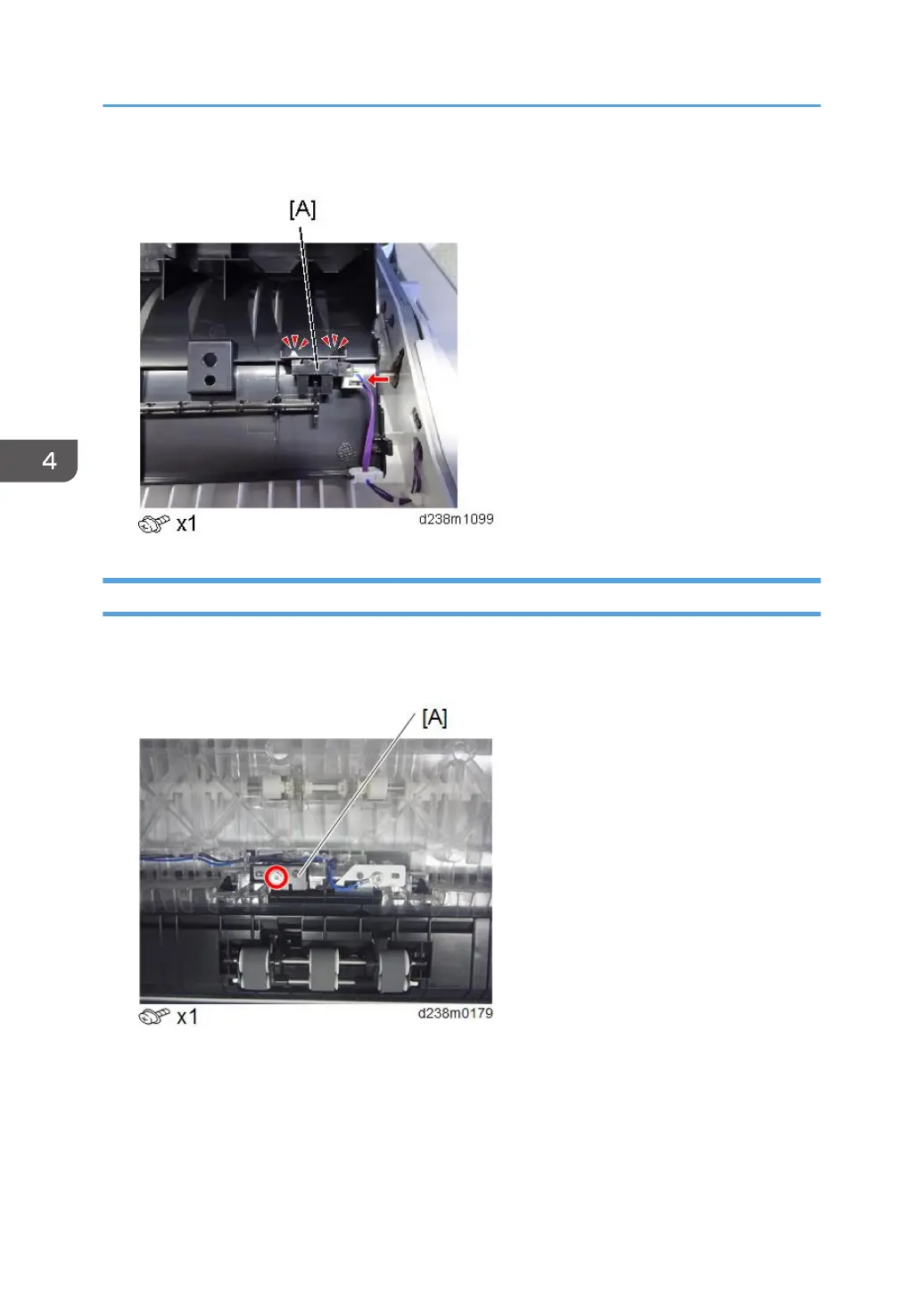

3. Duplex entrance sensor unit [A]

Duplex Exit Sensor

1. Duplex unit (page 676)

2. Harness guide [A]

4. Replacement and Adjustment

680
