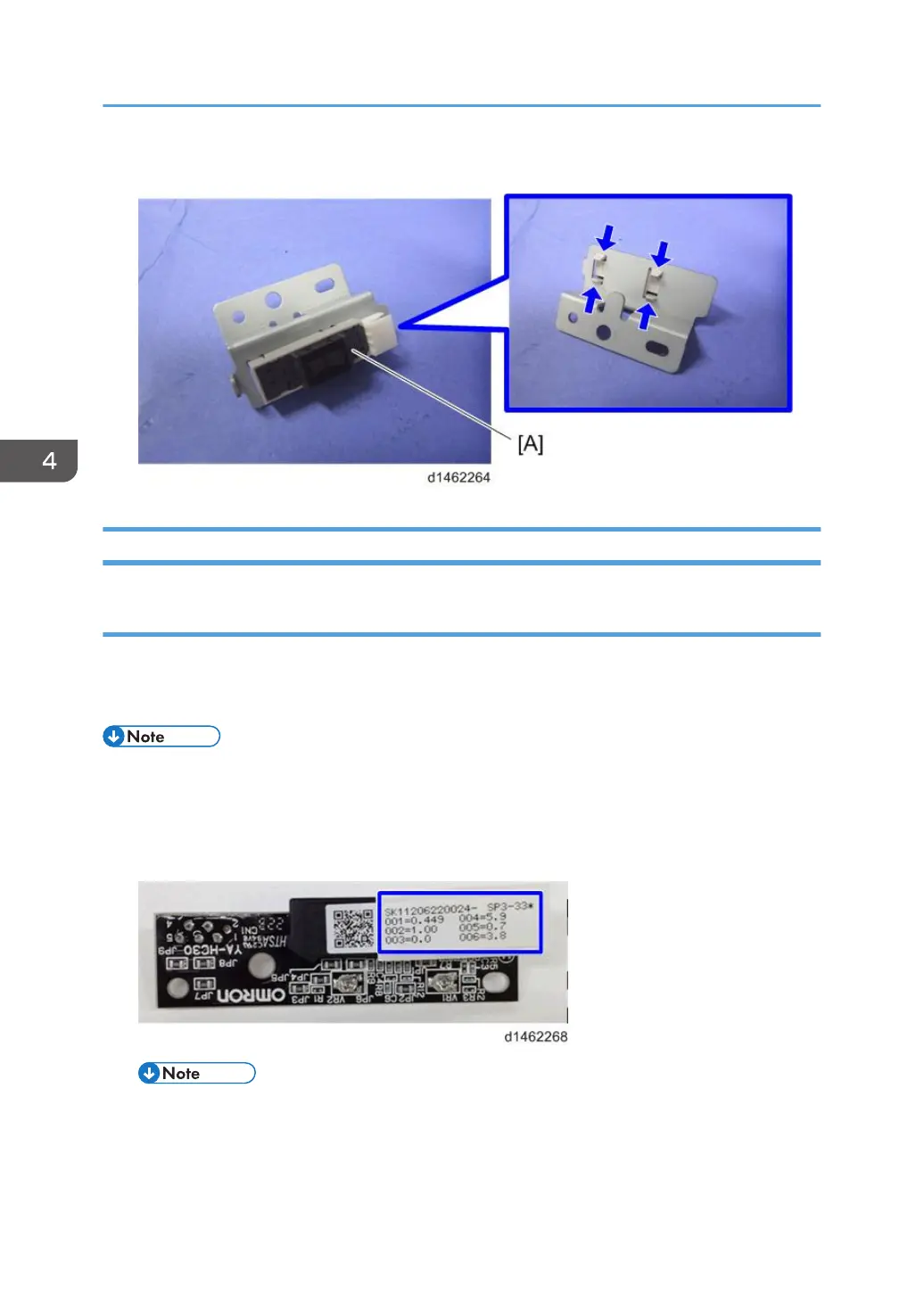

3. Fusing entrance sensor [A]
TM/ID Sensor
Before Replacing the TM/ID sensor
Each sensor assembly has a list of characteristic values attached to it. Before you replace the TM/ID
sensor, you must do the following procedure, or process control/MUSIC will not be done correctly after
power is switched on (it will use the values for the old sensor).
• The characteristic values attached to the service part must be entered before replacement. It is
recommended that in case Process control/MUSIC after replacement is not completed
successfully, take a note of values of SP3-333, SP3-334 and SP3-335.
1. Note the characteristic values that are listed on the bar code label.
• TM/ID Sensor (front): F, TM/ID Sensor (center): C, TM/ID Sensor (rear): R, be careful.
2. Turn on the main power switch, and then go into the SP mode.
