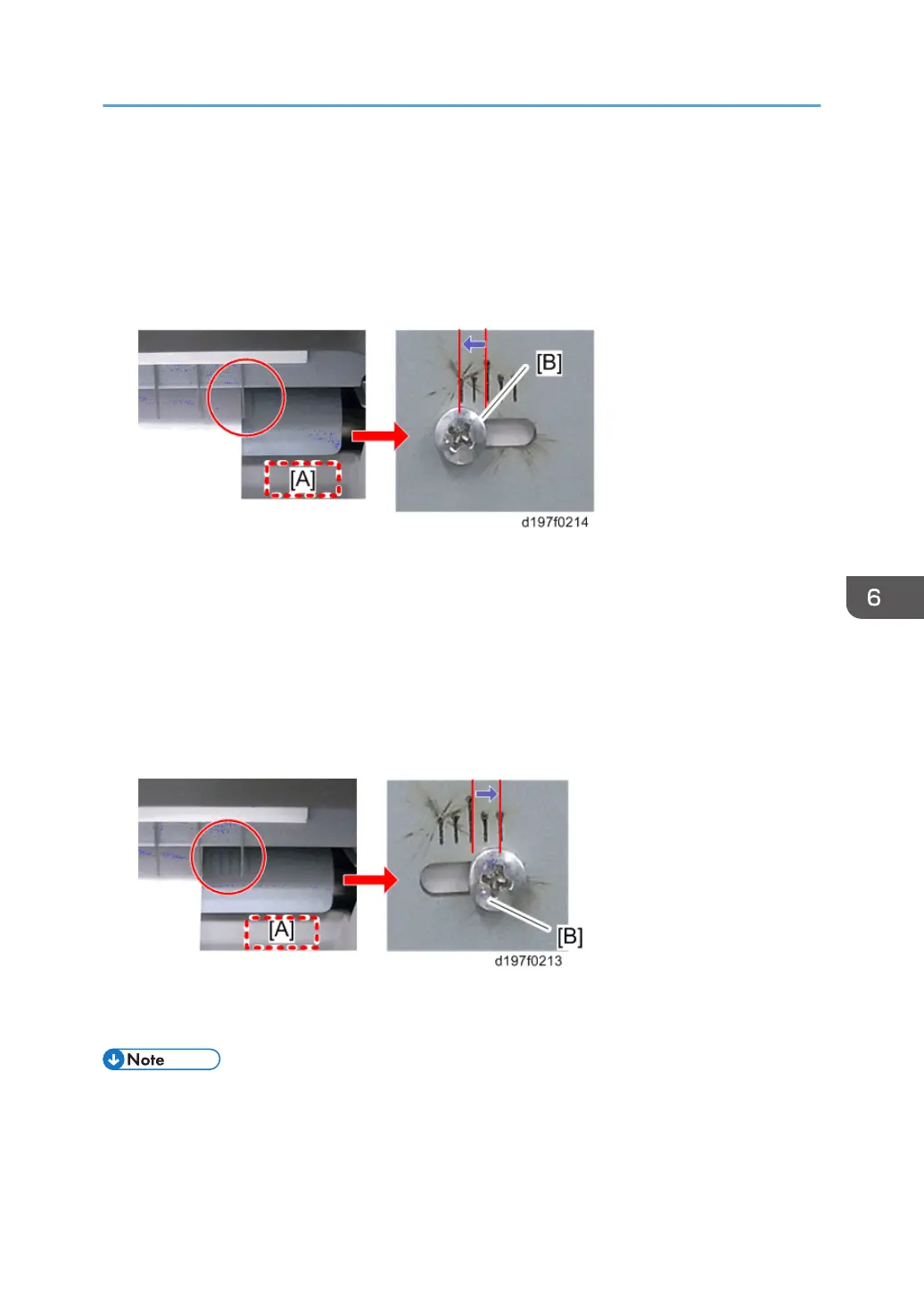

If the paper shifts towards the front
Slide the docking bracket towards the front side by the amount of shift, to move the finisher in the
same direction.
e.g.: When the paper has shifted by 4 mm towards the front from the center mark (2 mm/division
of the scale), move the docking bracket towards the front by 4 mm (2 divisions). The divisions move
towards the rear.
[A]: Proof tray
[B]: Docking Bracket Screw
If the paper shifts towards the rear
Slide the docking bracket towards the rear by the amount of shift, to move the finisher in the same
direction.
e.g.: When the paper has shifted by 4 mm towards the rear from the center mark (2 mm/division of
the scale), move the docking bracket towards the rear by 4 mm (2 divisions). The divisions move
towards the front.
[A]: Proof tray
[B]: Docking Bracket Screw
• After the adjustment, check the side-to-side registration by feeding paper out to the proof tray. If the
shift has not been solved, adjust the docking bracket (screw for the docking bracket) slightly again.
Troubleshooting for Finishing Options
