Ricoh MP C3004 - Scanner Upper Cover; Exposure Glass

To Next Page

To Previous Page

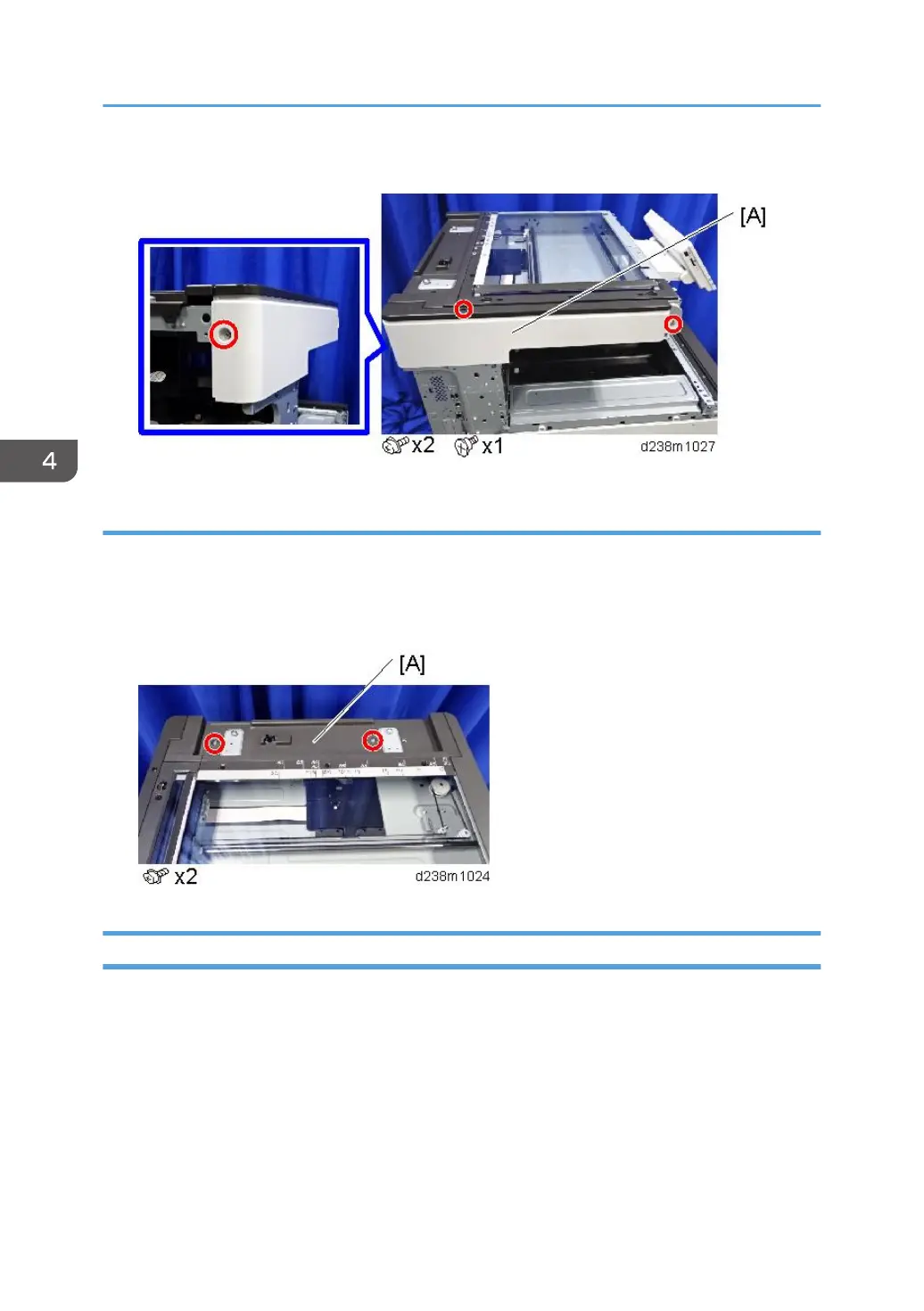

3. Scanner left cover [A]

Scanner Upper Cover

1. Platen cover or ADF

2. Rear cover (page 499)

3. Scanner Upper Cover [A]

Exposure Glass

1. Open the platen cover or ADF.

2. Scanner right cover (page 521)

4. Replacement and Adjustment

522
