Ricoh MP C3004 - Checking the Position of the Paper Exit Feeler

17. Connect the harness to the 1-bin tray, and bring it around.
18. Insert the tray support bar firmly in the 1-bin tray, and attach the harness cover [A].
19. Reattach the left rear cover, upper left cover and proximity sensor cover, and close the
right door.
20. Reattach the paper exit tray and paper exit feeler.
21. Turn ON the main power.
22. Check that output to this tray can be selected on the operation panel, and check
operation.
Checking the Position of the Paper Exit Feeler

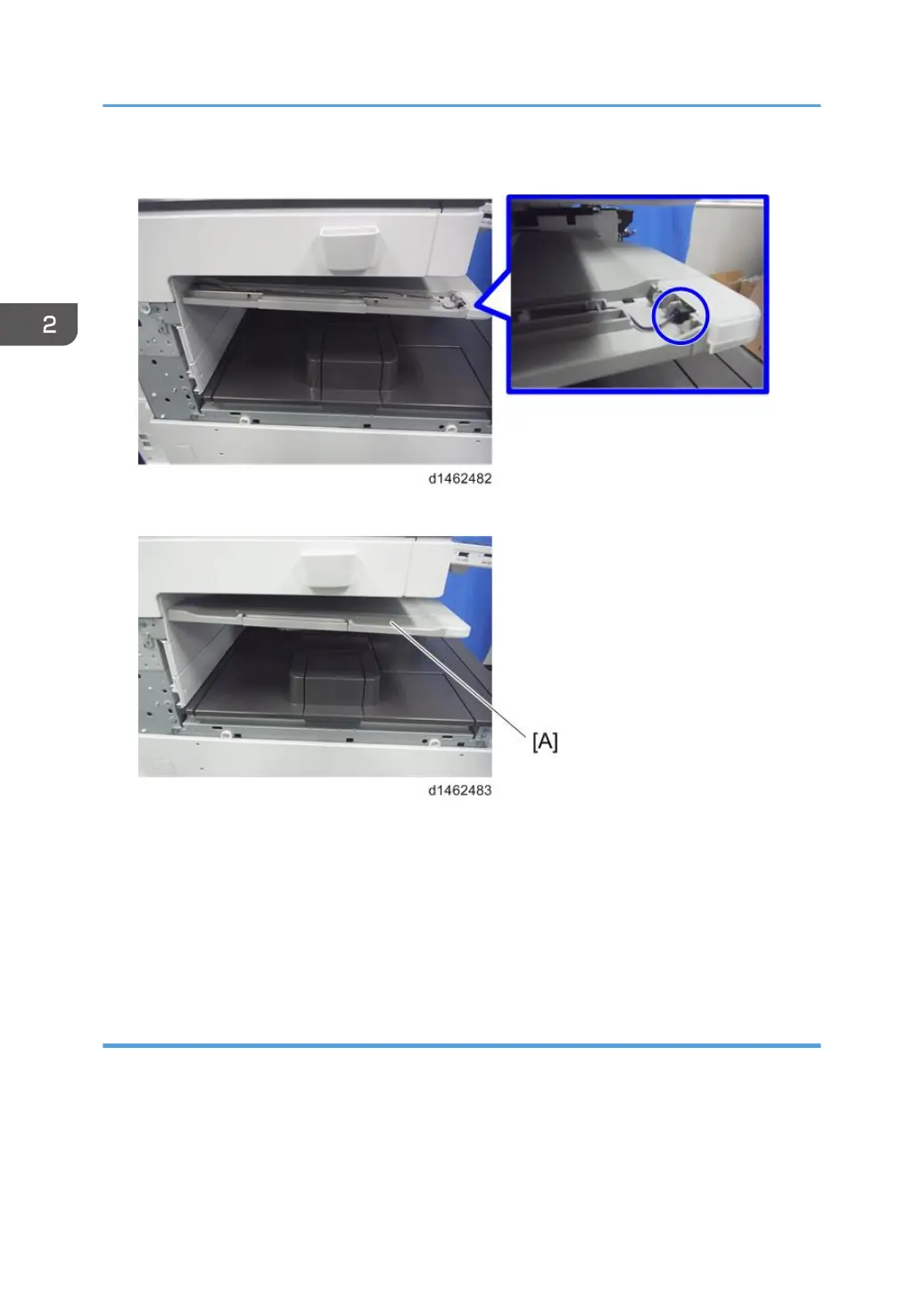

Check the following points for the paper exit feeler [A] at the paper exit.
• It can move in line with the ejection of paper
• It holds contact with the surface of the ejected paper and is still movable
