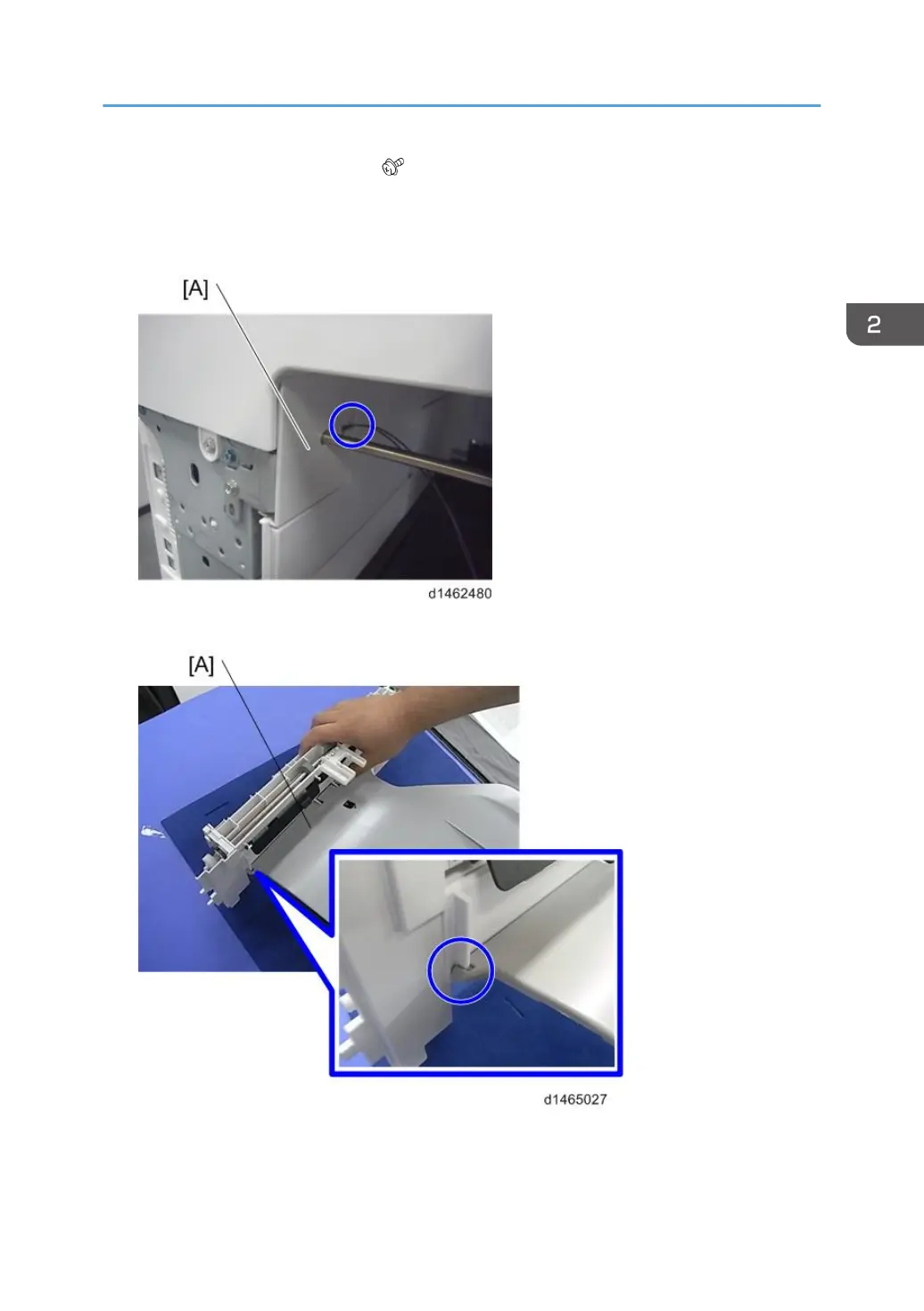

15. Attach the tray support bar [A] ( ×1).
When attaching the tray support bar [A], make sure that the harness attached in the previous step
goes through the slit in the tray support bar circled in blue [A] and comes outside of it as shown
below.
16. Hook the 1-bin tray [A] onto the 1-bin tray unit, aligning the positions in the blue circle.
1 Bin Tray BN3110 (D3CQ)
