A4 LEF, LT LEF, B5 LEF, and A5 LEF (select with UP mode, default is A4 LEF)
Paper size detection (2nd paper supply tray)

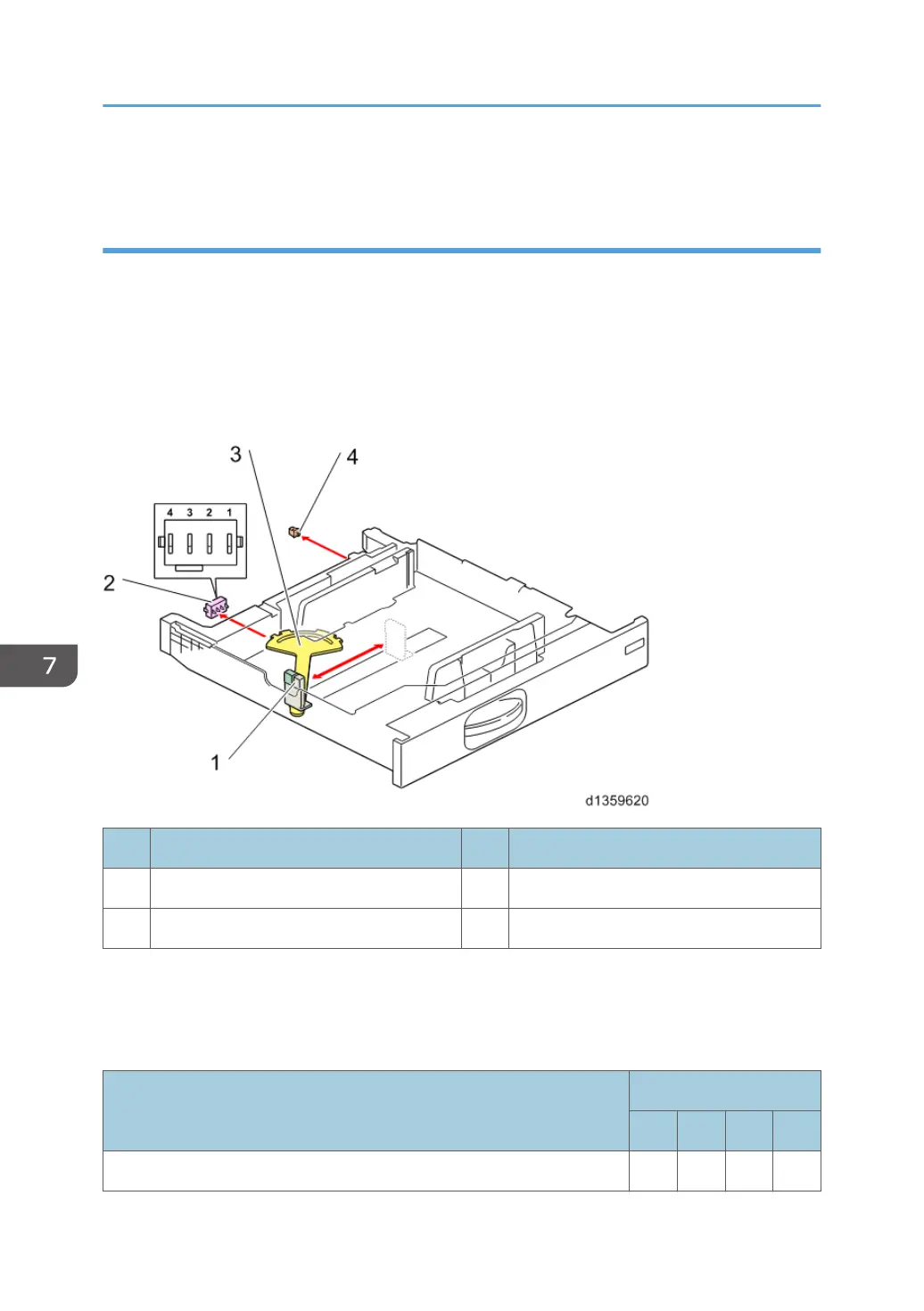

The end fence interlocking rotation detection plate is an automatic detection system which recognizes
patterns by a 4-position push switch.
Size is detected by the detection patterns of knobs 1, 2, 3, and 4. Tray set is detected by another switch.
If there has been a change in the pattern, "MFP tray automatic size detection" control is performed
continuously.
If the paper size is selected manually by user setting, the automatic size detection is overridden.
No. Description No. Description
1 End fence 3 Size detection actuator
2 Size switch 4 Tray set switch
• 2nd tray detection sizes:
SRA3, A3, B4, A4 SEF, LT SEF, B5 SEF, A4 LEF, B5 LEF, and A5 LEF
• 2nd tray size detection patterns
Size
Knob
4 3 2 1
SRA3(12"×18") 1 0 1 0
