Ricoh MP C3004 - [D]: Replacing the Memory

To Next Page

To Previous Page

USB connector [B] (IPU)

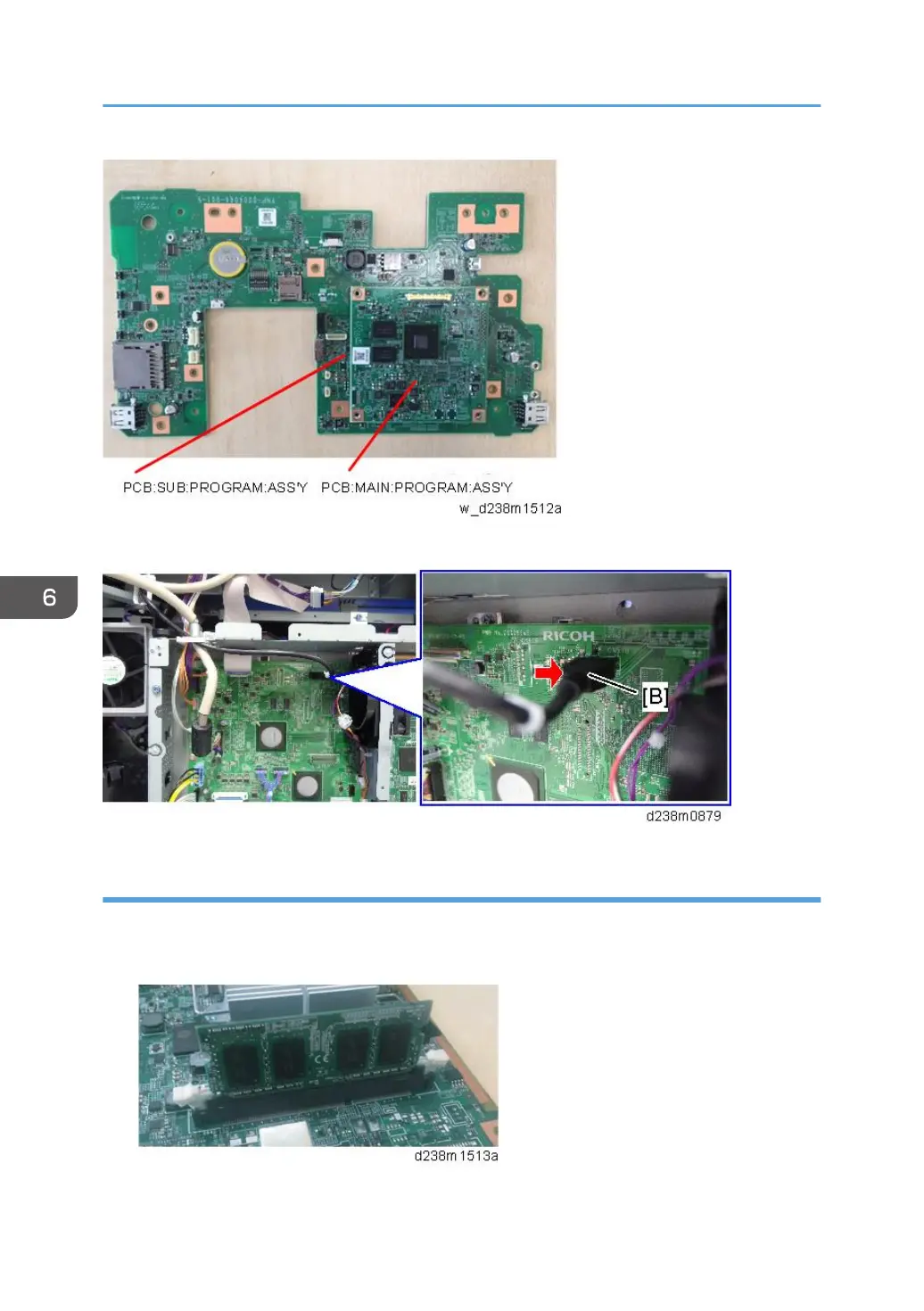

[D]: Replacing the Memory

1. Turn the machine power OFF.

2. Attach the memory on the CTL as shown (in a vertical orientation).

6. Troubleshooting

1074
