Ricoh MP C3004 - Proximity Sensor

To Next Page

To Previous Page

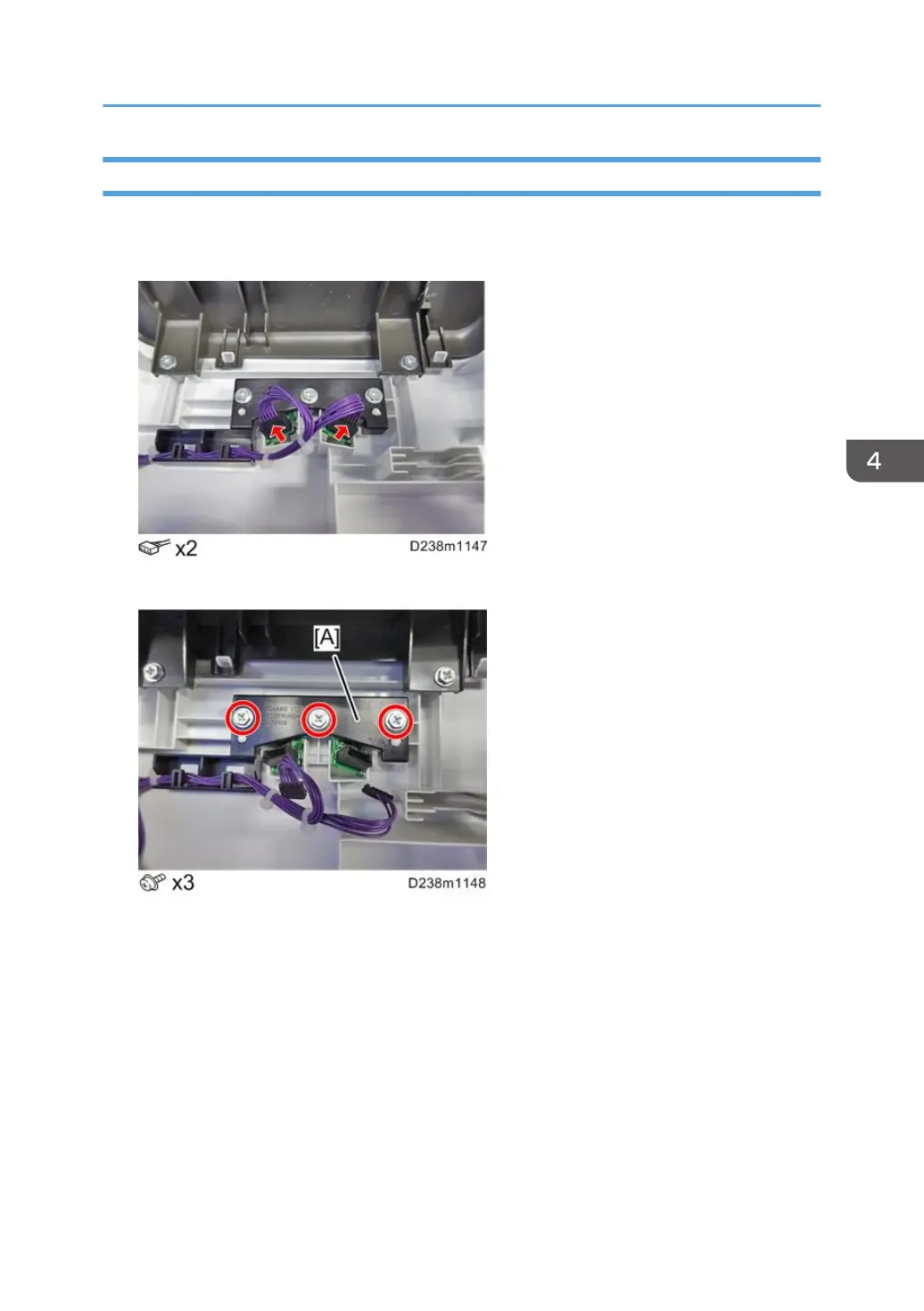

Proximity Sensor

1. Proximity sensor cover (page 501)

2. Two connectors

3. Bracket [A]

Exterior Covers

503
