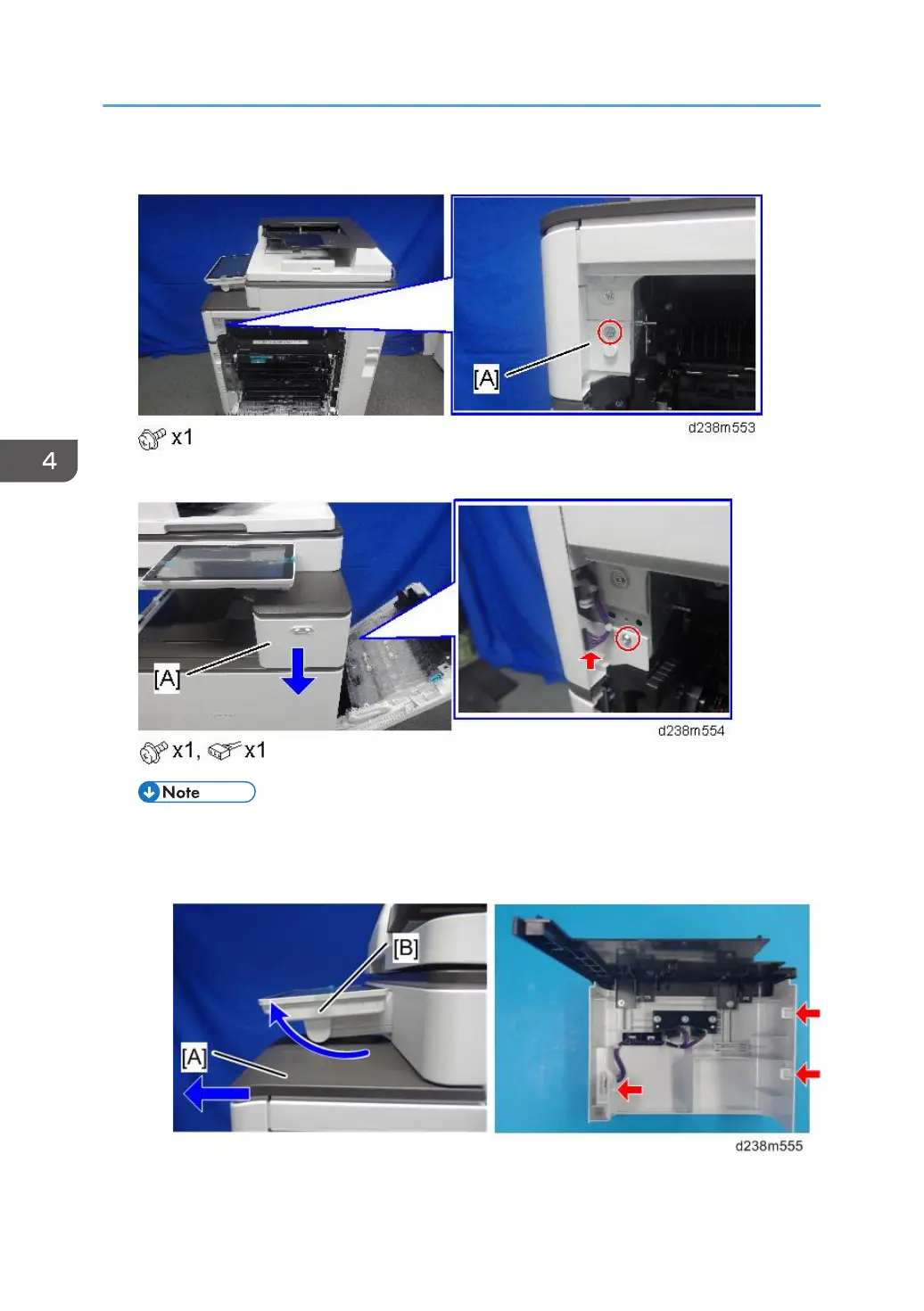

2. Small cover [A]

3. Proximity sensor cover [A]

• Remember that there are three tabs at the positions in the red arrows.

• Tilt the operation panel [B] upward to a horizontal position, and then remove the proximity

sensor cover [A].

4. Replacement and Adjustment

502
